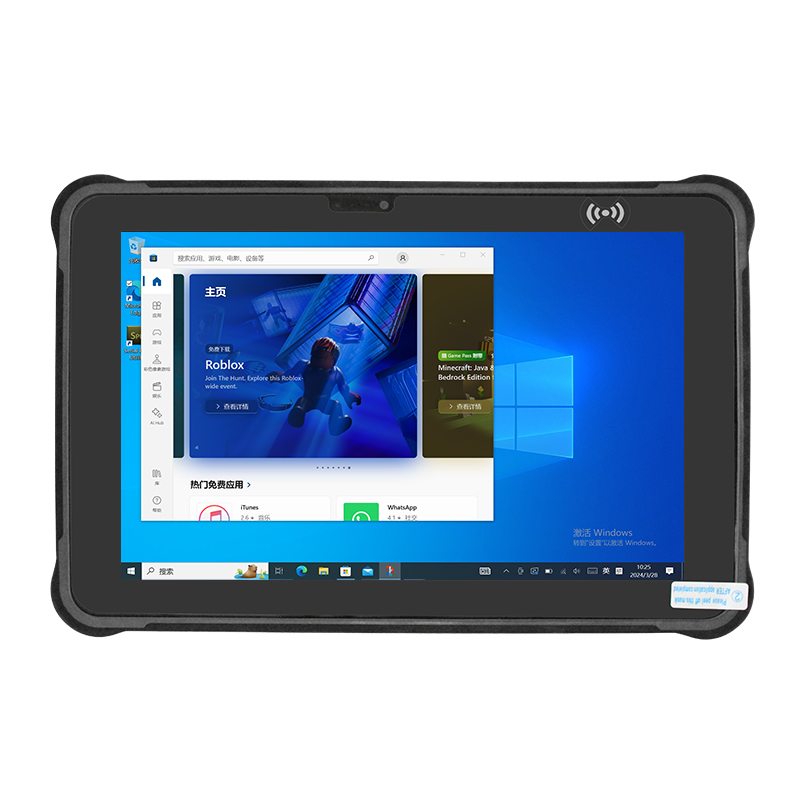

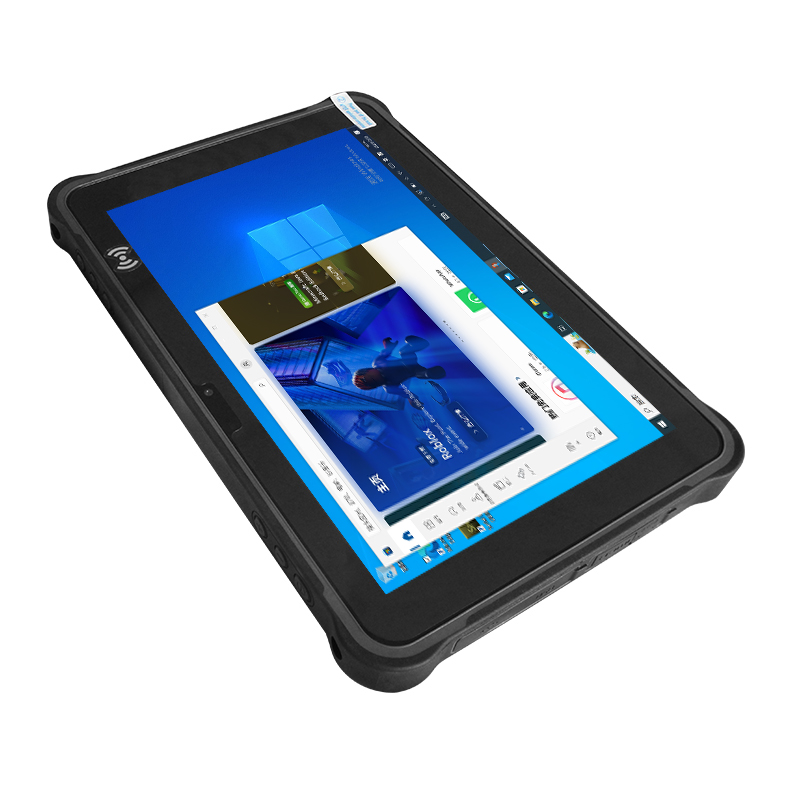

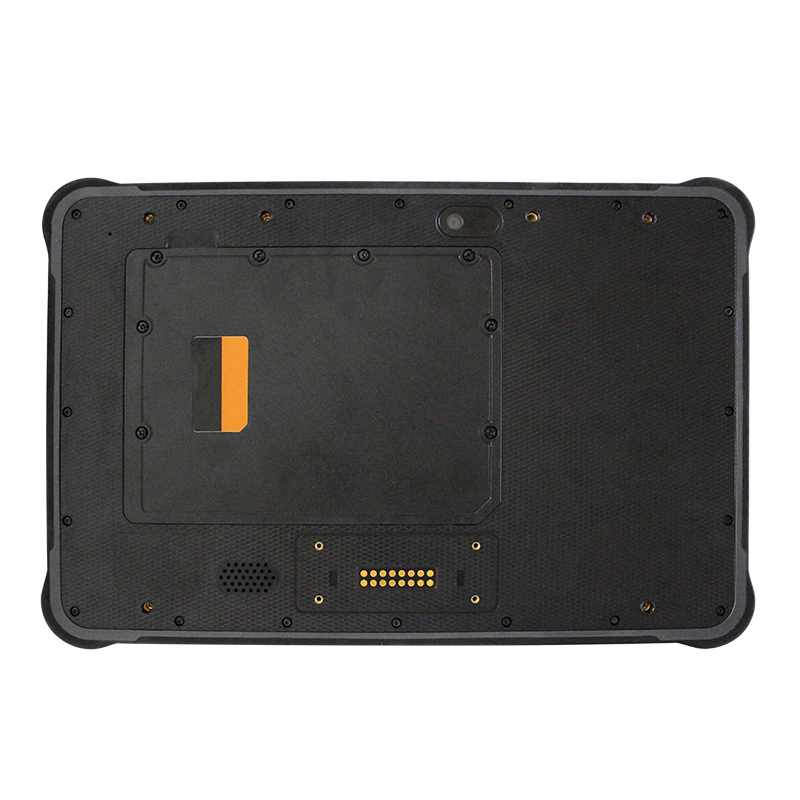

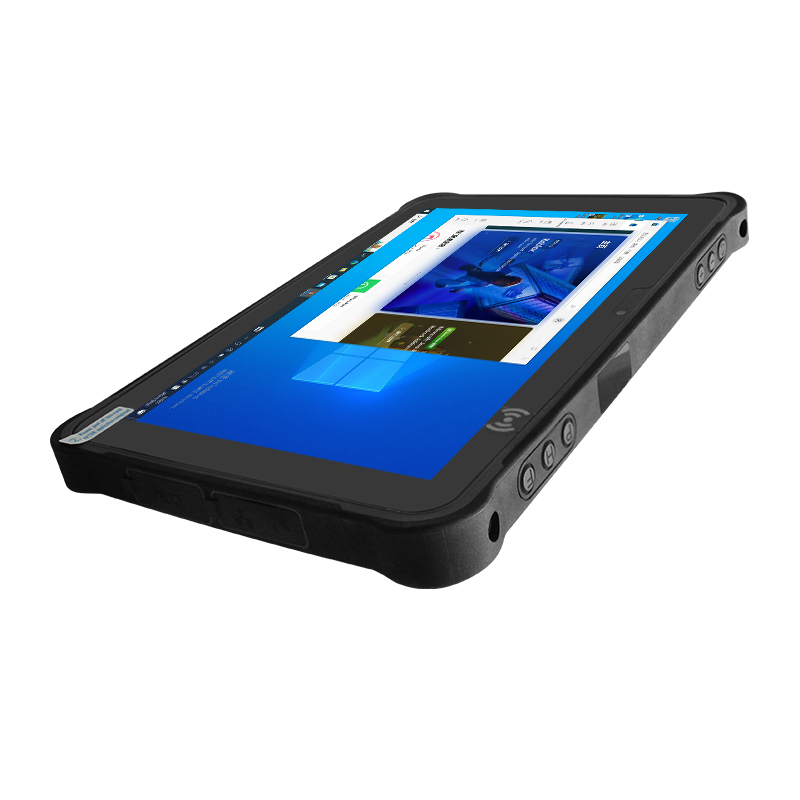

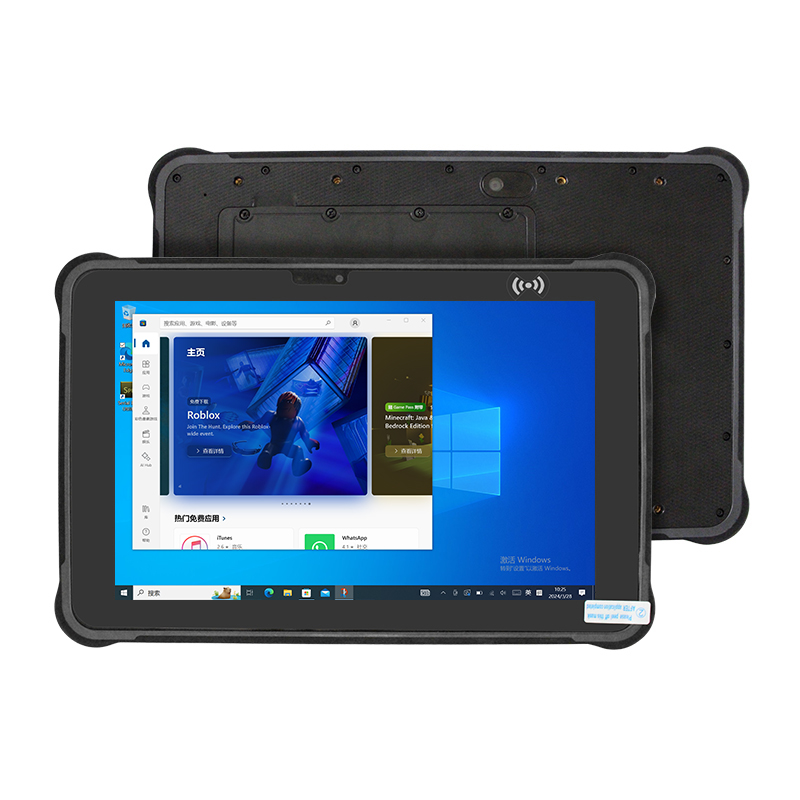

10.1 inch Intel I5-8200Y 1000nits Optional Windows Rugged Tablet
ST11-M Rugged Tablet Overview
The ST11-M Rugged Tablet is a durable, high-performance device designed for demanding environments, featuring a 10.1-inch display and a range of optional features. Key specifications include:
- Operating System: Windows 10 Pro (Windows 10 Home/IoT, Windows 11 Pro, and UbuntuKylin-20.04 optional)
- CPU: Intel i5-8200Y Dual-Core, Quad Threads, 1.30GHz (up to 3.90GHz)
- RAM/Storage:
- 8GB / 256GB (16GB / 512GB optional)
- Display:
- 10.1-inch IPS, 1200x1920 resolution, 430 nits (450 nits max), 1000 nits option available
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP
- Battery:
- 6000mAh, 7.6Vdc (45.6Wh)
- Charging time: ~4 hours
- Usage time: 7.5 hours (50% volume, 60% brightness, playing local 1080p video)
- Standby time: ~4 days
- Connectivity:
- 4G LTE:
- FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28
- TDD-LTE: B40
- WCDMA: B1/B2/B4/B5/B8
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G), Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
- Bluetooth: 4.2
- GPS: Beidou, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- 4G LTE:
- Sensors: Light sensor, Acceleration sensor, Gravity sensor
- Interfaces:
- HDMI x1
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 4.0*15mm x1
- USB 3.0 x2
- RJ45 Ethernet x1
- RS232 x1
- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- UHF RFID (American/European standards, 3-5m reading distance)
- Fingerprint scanner (AFM60)
- High-precision GPS (UM960)
- Accessories: Blue Box, DC Charger (12V 4A), carry strap, bag & screw, wrist strap, optional docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
This rugged tablet is perfect for industrial and outdoor applications, offering a balance of performance, durability, and versatile connectivity options.
Specifications
| ST11-M SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 10 Pro | Windows 10 Home / Iot Optional Windows 11 Pro Optional Ubuntukylin-20.04 Optional |
| CPU | Intel I5-8200Y (Dual Core, Quad Threads; 1.30GHz) | Turbo can reach 3.90GHz |
| RAM/ROM | 8GB/256GB | 16GB/512GB Optional |
| LCD | 10.1 inch; 1200*1920; IPS | 430nits (TYP) 450nits (MAX) 1000nits(1200*1920) Optional |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP | |
| Power and Battery | 6000mAh / voltage 7.6Vdc(45.6Wh) | Charging time: about 4 hours Usage time: 7H30min (50% volume, 60% brightness, playing local 1080P video) Standby time: about 4 days (screen off standby) |
| WWAN | 4G Fre: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: B2/B3/B5/B8 | Module: SLM770A (EC25-AUX in North America) |
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1) |
| BLUETOOTH | 4.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Acceleration sensor 3. Gravity sensor | |
| Size | 273*172*20mm | |
| Weight | 1150±50g | |
| Language | Multi language | |

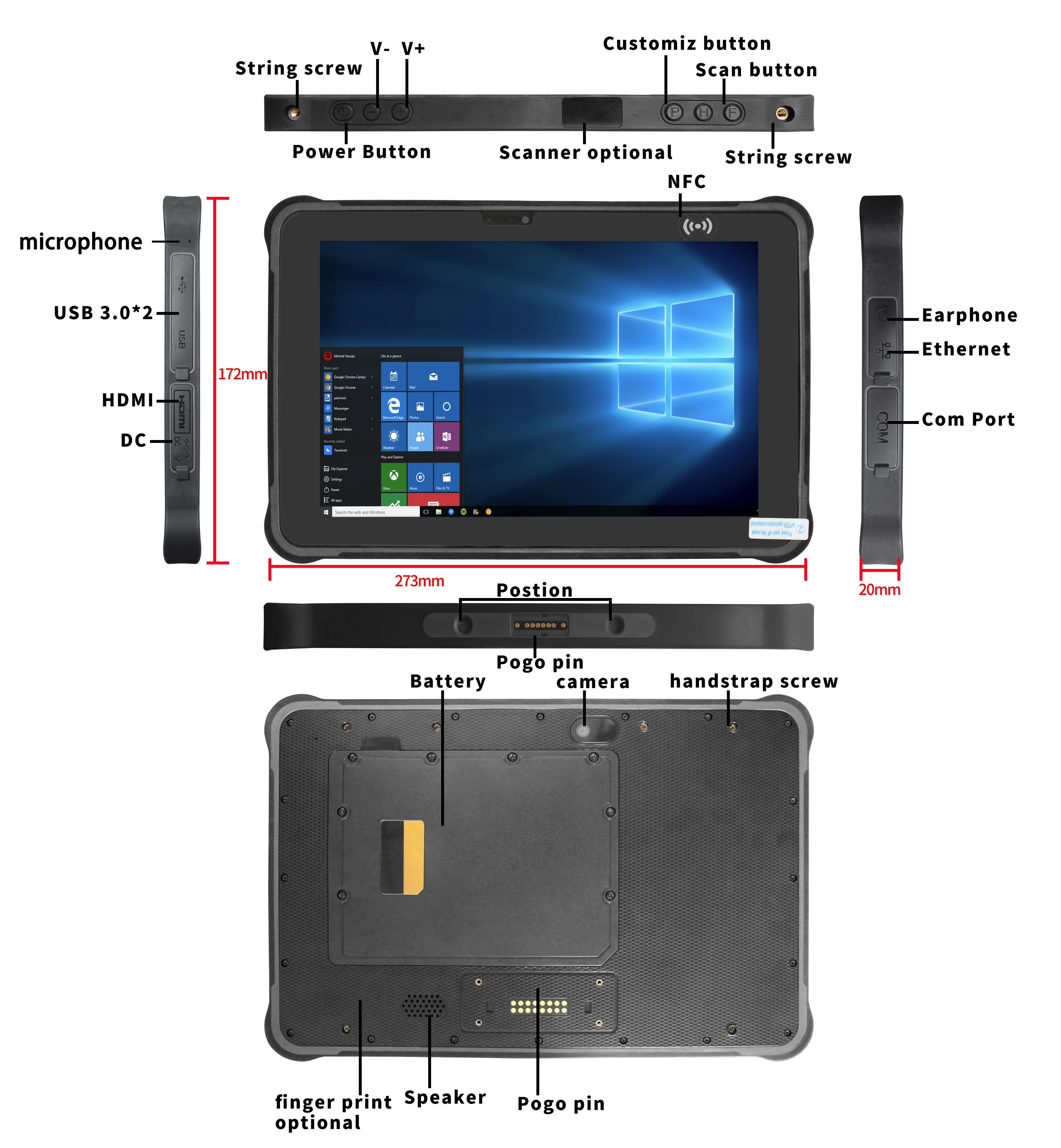

| Interface In/Out Port | 1. HDMI*1 2. SIM Card Slot*1 3. TF Card Slot*1 (Customized items) 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB 3.0 *2 7. RJ45*1 8. RS232*1 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P, H (Default No Functionality) |
| 1D/2D Barcode | Optional | Honeywell N4680 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | AFM60 Optional |
| High Precision GPS | Optional | UM960 |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Bag & Screw 5. Wrist strap | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
