15.6 inch IPS screen Intel I5-8200Y Panel PC
SP15-M Product Overview
The SP15-M is a rugged, 15.6-inch laptop powered by Intel Core i5, designed for durability and performance in challenging environments. Key specifications include:
- Operating System: Windows 10 Pro (Windows 10 Home/IoT and Windows 11 Pro optional)
- CPU: Intel i5-8200Y Dual-Core, up to 3.90GHz (turbo)
- GPU: Intel® UHD Graphics 615
- RAM/Storage:
- 8GB/256GB
- Optional: 16GB/512GB
- Display: 15.6-inch IPS LCD, 1080x1920 resolution
- Touchscreen: 10-point touch, stylus support
- WiFi: 802.11a/b/g/n/ac, dual-band (2.4G & 5G), Intel Dual Band Wireless-AC 7265 (WiFi/Bluetooth 2-in-1), optional external antenna
- Bluetooth: 4.2
- Speaker: 4Ω 2.0Watt x 2
- Ports:
- HDMI x1, RJ45 x1, RS232 x1, Earphone x1, DC x2 (4.0x15mm), USB 3.0 x2
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
Accessories: Box, DC Charger (12V 4A)
The SP15-M offers a robust combination of performance, connectivity, and rugged durability, making it ideal for industries requiring a reliable mobile computing solution.
Specifications
| SP15-M SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 10 Pro | Windows 10 Home / Iot Optional Windows 11 Pro Optional |
| CPU | Intel I5-8200Y (Dual Core, Quad Threads; 1.30GHz) | Turbo can reach 3.90GHz |
| GPU | Intel® UHD Graphics 615 | |
| RAM/ROM | 8GB/256GB | 16GB/512GB Optional |
| LCD | 15.6 inch; 1080*1920 | IPS |
| Touch Screen | 10 Point Touch | Support stylus |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | Module：Intel® Dual Band Wireless-AC 7265 (WIFI/Bluetooth 2-in-1) Antenna built-in or external Optional |
| BLUETOOTH | 4.2 Version | |
| SPEAKER | 4Ω 2.0 Watt * 2 | |

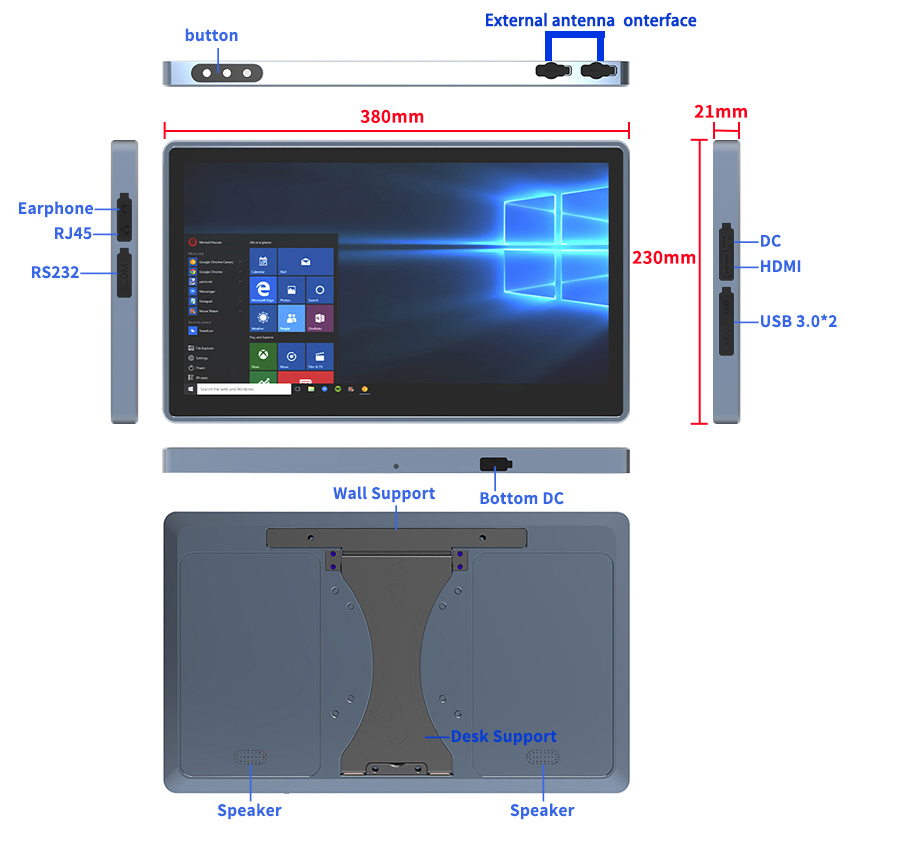

| Size | 384*234*22.5mm | |
| Weight | 2600±50g (Without antenna) | |
| Language | Multi language | |
| Interface In/Out Port | 1. HDMI*1 2. RJ45*1 3. RS232*1 4. Earphone*1 5. DC*2: 4.0*15mm 6. USB 3.0 *2 | |
| Button | V+ -, Power | |
| Accessories | 1. Box 2. DC Charger (12V 4A) | |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
