Intel N100 New generation，6.5 inch 4G LTE Rugged terminal
Intel N100 6.5-inch 4G LTE Rugged Terminal Overview
The Intel N100 6.5-inch 4G LTE Rugged Terminal is a durable, high-performance device powered by Windows 11, designed for demanding environments. Key specifications include:
- Operating System: Windows 11 Pro (Home/IoT optional)
- CPU: Intel N100 Quad-Core, 1.8GHz (Turbo up to 3.4GHz)
- GPU: UHD Graphics with 24 Execution Units (EUs)
- RAM/Storage:
- 8GB/256GB
- Optional: 16GB/512GB
- Display: 6.5-inch, 720x1600, 380 nits brightness
- Touchscreen: 10-point touch
- Camera:
- Front: 5MP
- Rear: 8MP
- Battery:
- 5000mAh, 7.6V
- Charging time: ~3 hours
- Usage time: 4h 30min (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE, WCDMA, GSM
- GPS: BDS, GPS, GLONASS
- WiFi: 802.11 a/b/g/n/ac/ax, dual-band (2.4G & 5G), Intel Wi-Fi 6 AX201 (WiFi/Bluetooth 2-in-1)
- Bluetooth: 5.2
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light sensor, G-sensor, Acceleration sensor
- Size/Weight: 180x85x22mm, 460±20g
- Interfaces:
- Type-C (full-featured, quick charge 20W) x1
- SIM card slot x1
- TF card slot x1
- USB 3.0 x2
- Customizable buttons and optional 1D/2D barcode scanner (NLS-N1, Zebra SE5500, Zebra SE4710, SE655)
- Multimedia:
- Photo Viewer: BMP, JPG, GIF, PNG
- Video: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P)
- Audio: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (license required)
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -25°C to 80°C
- Accessories: Blue Box, 20W Charger, optional Docking Station
The Intel N100 Rugged Terminal combines powerful performance, rugged durability, and versatile connectivity, making it ideal for industrial and outdoor applications.
Specifications
| SH6 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 11 Pro | Home / Iot Optional |
| CPU | Intel N100 (Quad Core, Quad Threads; 1.8GHz) | Turbo can reach 3.4GHz |
| GPU | UHD Graphics (24 EUs) | |
| RAM/ROM | 8GB/256GB | 16GB/512GB Optional |
| LCD | 6.5 inch; 720*1600; 380nits | |
| Touch Screen | 10 Point Touch | |
| Camera | Front: 5MP; Rear: 8MP | |
| Power and Battery | 5000mAh; 7.6V | Charging time: about 3H Usage time: 4H30min(50% volume, 60% brightness, playing local 1080P video) |
| WWAN | FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 | Module: SLM770A (EC25-AUX in North America) |
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | Intel® Wi-Fi 6 AX201 (WiFi/Bluetooth 2-in-1) |
| BLUETOOTH | 5.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.0 Watt | |
| Sensor | 1. Light Sensor 2. G-Sensor 3. Acceleration sensor | |
| Size | 180*85*22mm | |
| Weight | 460±20g | |
| Language | Multi language | |

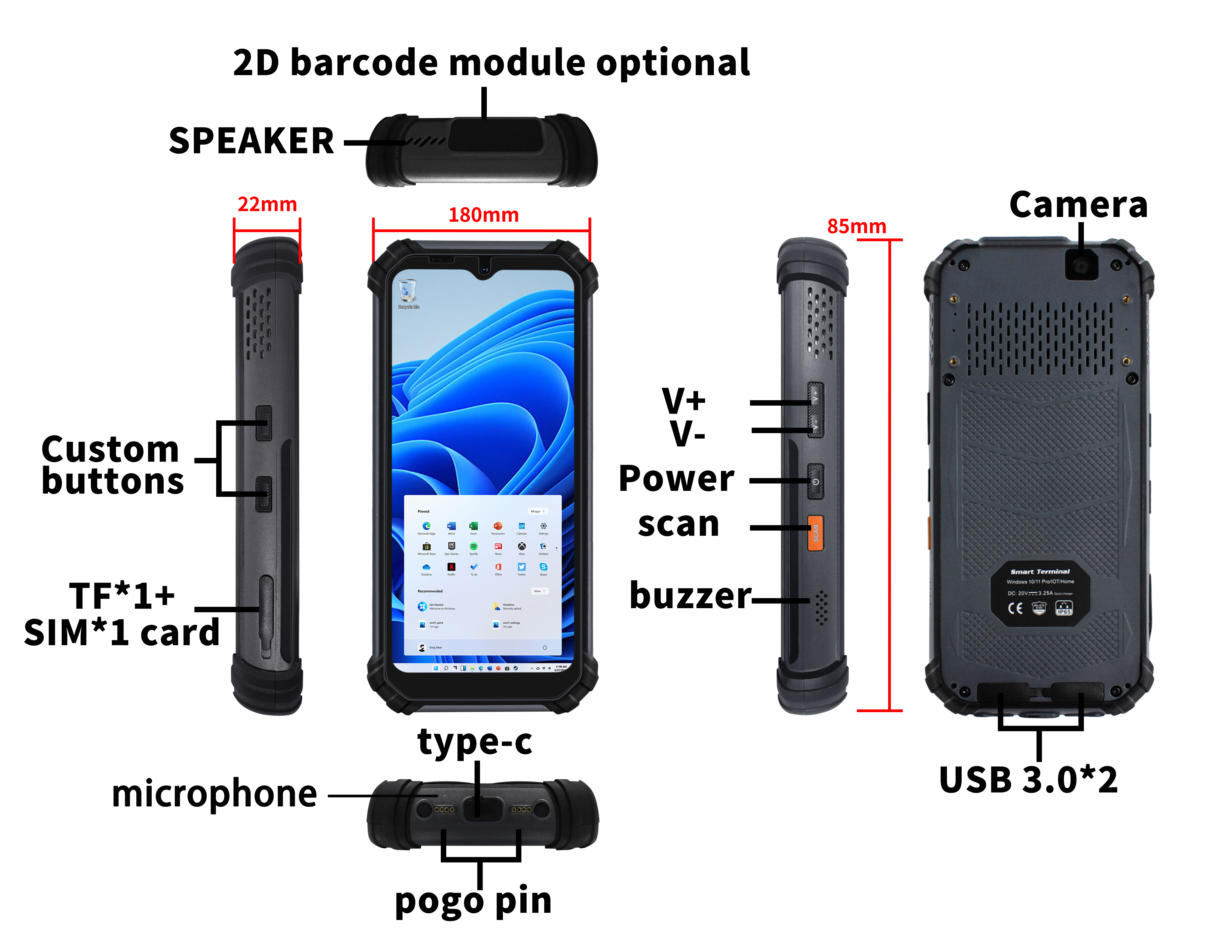

| Interface In/Out Port | 1. Type-C*1; Full-featured; Quick charge (20W) 2. SIM Card Slot*1 3. TF Card Slot*1 4. USB 3.0*2 | Bottom pogopin (8PIN) |
| Button | V+ -, Power, Scan | Customized Button *2 |
| 1D/2D Barcode | Optional | NLS-N1 optional Zebra SE5500 optional Zebra SE4710 optional SE655 (1D) Optional |
| Accessories | 1. Blue Box 2. Charger (20W) | Optional: Docking Station |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
Case
Download
SH6 Data Download
Sincoole specializes in the design and production of rugged devices, with 10 years of industry experience. Our expertise lies in rugged tablets, handheld devices, and industrial computers, deeply rooted in various industries such as industrial applications, new energy applications, medical applications, outdoor data collection, chemical applications, aerospace, and military applications, empowering enterprises. We look forward to collaborating with you.
