5.5 inch is our company, the smallest Windows Rugged terminal

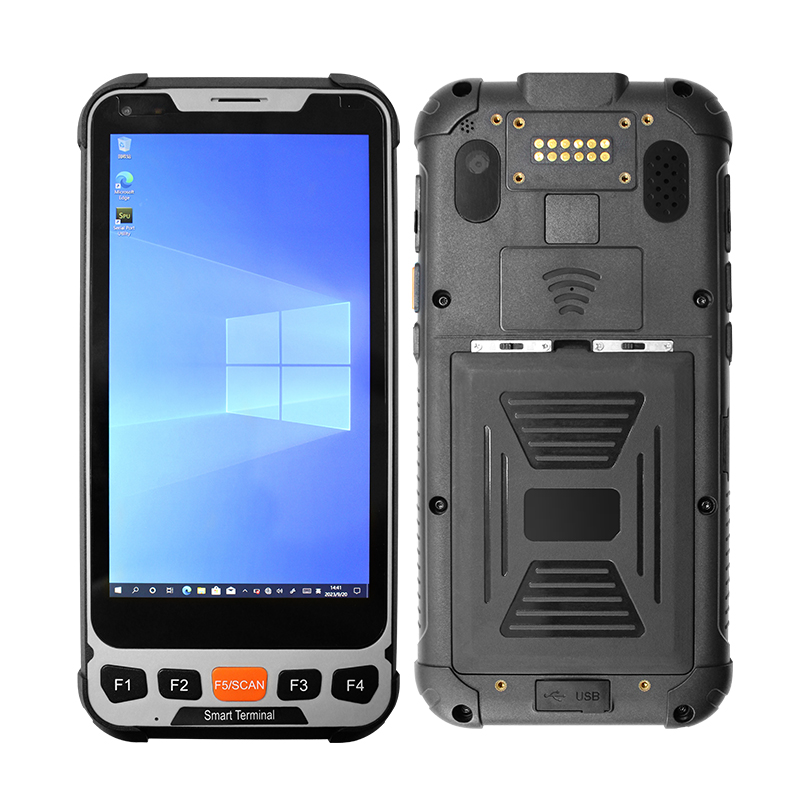

Smallest 5.5-inch Windows Rugged Terminal Overview
The 5.5-inch Windows Rugged Terminal is our company's most compact rugged device, featuring a durable design and robust performance. Ideal for tough environments, its key specifications include:
- Operating System: Windows 10 Pro (Windows 10 Home/IoT optional)
- CPU: Intel Cherry Trail Z8350 Quad-Core, 1.44GHz (Turbo up to 1.92GHz)
- GPU: Intel HD Graphics 400
- RAM/Storage: 4GB/64GB
- Display:
- 5.5-inch IPS screen, 1080x1920, 400 nits brightness
- 5-point touch
- Camera:
- Front: 2MP
- Rear: 5MP
- Battery:
- 5000mAh, 3.8V (19.0Wh)
- Charging time: ~4 hours
- Usage time: 5h 30min (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE, 3G WCDMA, GSM
- European Standard: EG91-EX, FDD-LTE Bands B1/B3/B7/B8/B20/B28
- American Standard: EG91-NAX, FDD-LTE Bands B2/B4/B5/B12/B13/B25/B26
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G), Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
- Bluetooth: 4.2
- GPS: BDS, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A, Mifare)
- 4G LTE, 3G WCDMA, GSM
- Sensors: Light sensor
- Size/Weight: 180x87x20mm, 350±20g
- Interfaces:
- Micro USB x1, OTG
- SIM card slot x1
- TF card slot x1
- USB 3.0 x1
- DC jack x1
- Customizable buttons and optional 1D/2D barcode scanner (Honeywell N4680, Rakinda LV3296, N4315)
- UHF RFID: Optional (American standard 902-928MHz, European standard 865-868MHz, built-in and external reading distances up to 5m)
- Fingerprint: Optional (1020A)
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -25°C to 80°C
- Accessories: Blue Box, DC Charger (5V 3A), Carry Strap, Screw, optional Docking Station
This compact rugged terminal offers a perfect blend of durability, performance, and versatility, making it suitable for a wide range of industrial and outdoor applications.
Specifications

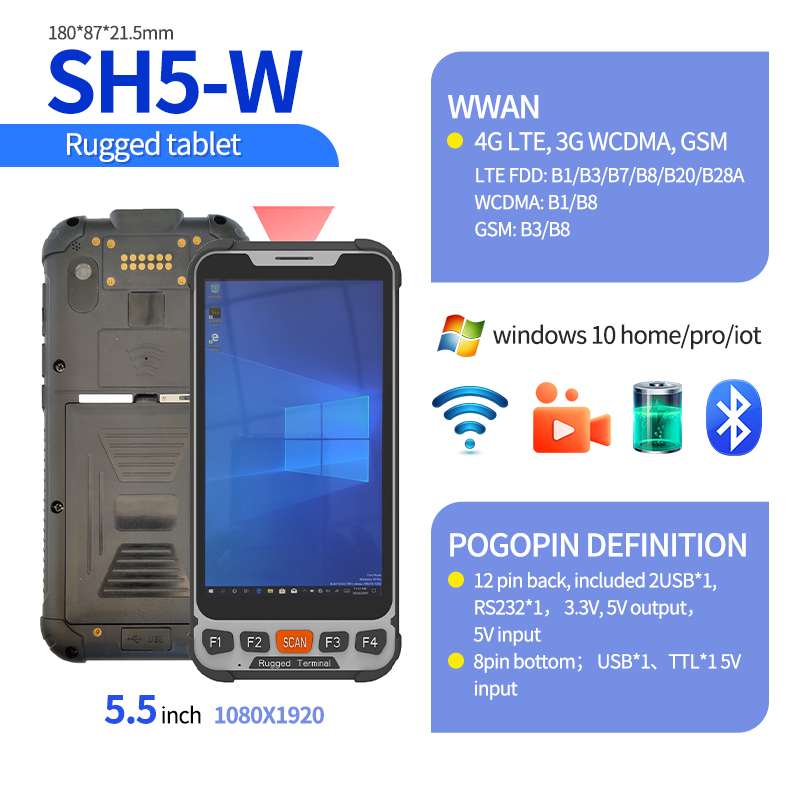

| SH5-W SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 10 Pro | Windows 10 Home / Iot Optional |
| CPU | Intel Cherry Trail Z8350 (Quad Core, Quad Threads; 1.44GHz) | Turbo can reach 1.92GHz |
| GPU | Intel HD Graphics 400 | |
| RAM/ROM | 4GB/64GB | |
| LCD | 5.5 inch; 1080*1920; 400nits | IPS Screen |
| Touch Screen | 5 Point Touch | |
| Camera | Front: 2MP; Rear: 5MP | 2M（GC2355）/5M（OV5648） |
| Power and Battery | 5000mAh; 3.8V（19.0Wh） | Charging time: about 4H Usage time: 5H30min (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | 4G LTE,3G WCDMA,GSM | EG91-EX (European Standards) FDD_LTE: B1/B3/B7/B8/B20/B28 WCDMA: B1/B8 GSM: 900/1800MHz |
| EG91-NAX (American Standard) FDD_LTE: B2/B4/B5/B12/B13/B25/B26 WCDMA: B2/B4/B5 | ||
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | Module: Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1) |
| BLUETOOTH | 4.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443; TYPE A; Mifare |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.0 Watt | |
| Sensor | Light sensor | |
| Size | 180*87*20mm | |
| Weight | 350±20g | |
| Language | Multi language | |

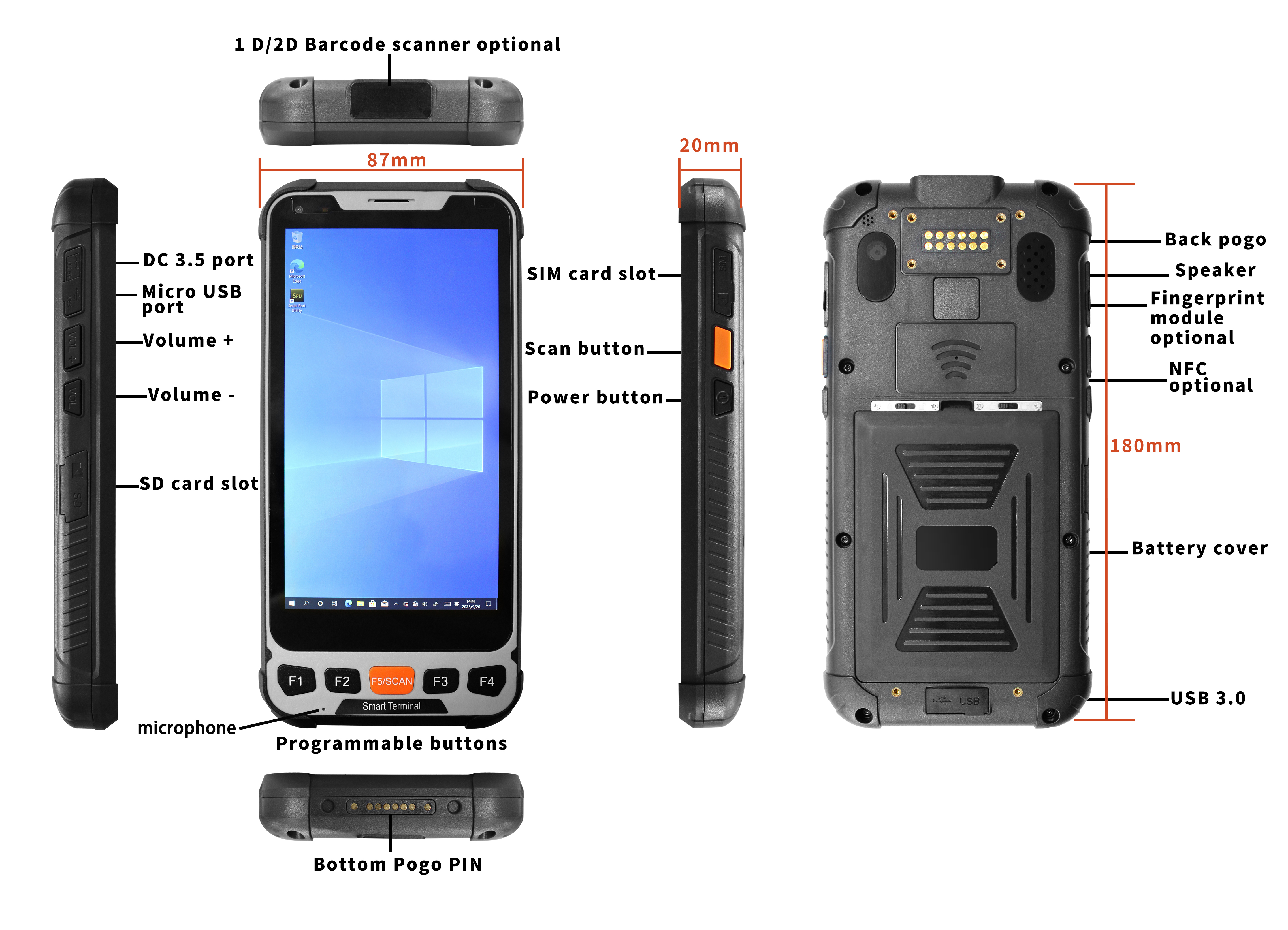

| Interface In/Out Port | 1. Micro USB*1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. USB 3.0*1 5. DC*1; 3.5*12mm | Bottom pogopin: USB 2.0; POE Charging Back pogopin: USB 2.0; RS232; Charging |
| Button | V+ -, Power, Barcode Scan*2 | Customized Button: F1,F2,F3,F4 |
| 1D/2D Barcode | Optional | 2D Honeywell N4680 Optional 2D RAKINDA LV3296 Optional 1D N4315 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) Built in: card reading distance 1-2M External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) Built in: card reading distance 1-2M External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | 1020A Optional |
| Accessories | 1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Screw | Optional: Docking Station |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
