13.3 inch 1080p Intel I5/I7 Windows Rugged Tablet

13.3-inch Windows 11 Rugged Tablet Overview

The 13.3-inch Windows 11 Rugged Tablet is a high-performance, durable device designed for demanding environments. Available with Intel i5 or i7 processors, it combines robust features with versatile connectivity. Key specifications include:

  • Operating System: Windows 11 Pro (Windows 10 optional)
  • CPU Options:
    • Intel i5-1235U: 10 cores, 12 threads, 1.3GHz (up to 4.4GHz)
    • Intel i7-1255U: 10 cores, 12 threads, 1.7GHz (up to 4.7GHz)
  • GPU:
    • Intel® Iris® Xe Graphics 80EU (i5)
    • Intel® Iris® Xe Graphics 96EU (i7)
  • RAM/Storage:
    • i5:
      • RAM: 8GB/16GB (Max 64GB)
      • ROM: 128GB/256GB/512GB
    • i7:
      • RAM: 16GB/32GB (Max 64GB)
      • ROM: 128GB/256GB/512GB
    • RAM Type: LPDDR5
    • Storage Type: M.2 2242 SATA
  • Display:
    • 13.3-inch IPS, 1080p (400-450 nits)
    • 10-point touch, supports stylus and thin glove touch
  • Camera:
    • Rear: 5MP/8MP (5MP/13MP optional)
  • Battery:
    • 6000mAh, 7.6V (45.6Wh), optional 8000mAh
    • 12V 3A DC input, supports Type-C 65W fast charging
  • Connectivity:
    • 4G LTE:
      • FDD: B1/B2/B3/B4/B5/B7/B8/B28
      • TDD: B40
      • WCDMA: B1/B2/B4/B5/B8
      • GSM: B2/B3/B5/B8
    • WiFi: 802.11 a/b/g/n/ac/ax, dual-band (2.4G & 5G), WiFi 6
    • Bluetooth: 5.2
    • GPS: Beidou, GPS, GLONASS (ZP820P module)
    • NFC: 13.56 MHz, 5cm range (ISO/IEC 14443, MIFARE)
  • Speakers: 1.5W x 2 (2030 Horn)
  • Sensors: Light Sensor, Acceleration Sensor, G-Sensor
  • Size/Weight: 330x205x19.5mm, 1300g±100g
  • Interfaces:
    • 2x USB 3.0 Type-A
    • Type-C (supports fast charging)
    • HDMI Type-A
    • Anti-theft lock hole
    • Aviation interface x2 (RS232 partial functionality)
    • SIM card slot + TF card slot (TF hot-swap supported)
    • 3.5mm headphone jack
    • Ethernet RJ45 (10/100/1000M)
    • DC 12V 3A power interface
  • Durability:
    • IP65 waterproof
    • 1.2-meter drop resistance
    • MIL-STD-810G certified
  • Temperature:
    • Storage: -25°C to 80°C
    • Operation: -20°C to 55°C
  • Accessories: USB cable, adapter, hand strap, optional car charger, optional white box

This rugged tablet offers a perfect blend of performance, durability, and connectivity, making it ideal for industrial and outdoor applications.

Get in touch
Email contact

Specifications

ITEMDESCRIPTIONdetail
OSWindows 11 proWindows 10 optional
CPUIntel I5-1235U
10 cores with 12 threads/main frequency 1.3GHz, up to 4.4GHz/power consumption 15W
Intel I7-1255U
10 cores with 12 threads/main frequency 1.7GHz, up to 4.7GHz/power consumption 15W
GPUIntel® Iris® Xe Graphics 80EU (I5)Intel® Iris® Xe Graphics 96EU (I7)
RAM/ROMI5
RAM
8GB/16GBMaximum 64GB
ROM: 128GB/256GB/512GB
I7

RAM
16GB/32GBMaximum 64GB
ROM: 128GB/256GB/512GB
RAM
LPDDR5 496 Ball
ROM

M.2 2242 SATA
C500
LCD13.3 inch 1920*1080400nits(Min) ~ 450nits(TYP)
Touch screen10 point touch
support tylus
support thin glove touch

Camera5M/8M5M/13M optional
Power and battery6000mAh, 7.6V lithium battery(45.6Wh)8000mAh optional
DC4.0*1.7mm, 12V 3A DC inputSupports Type-C 65W fast charging
WWAN4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8
Module: SLM770A
(EC25-AUX in North America)
GPSBeidou, GPS, GlonassModule: ZP820P
WiFi802.11a/b/g/n/ac/ax wireless internet  Wireless AP ( Mobile AP )2.4G, 5Gsupport WIFI 6Module: AX201D2W,
integrated with Bluetooth
Bluetooth5.2 version
NFC13.56 MHz, distance 5cm or aboveISO/IEC14443MIFARE
Speaker1.5 watt*22030 Horn
Sensor1. Light Sensor
2. Acceleration Sensor
3. G-Sensor

Size330*205*19.5mm
Weight1300g±100g
Multi-media
(Hardware decoding)
Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
Languagemulti language

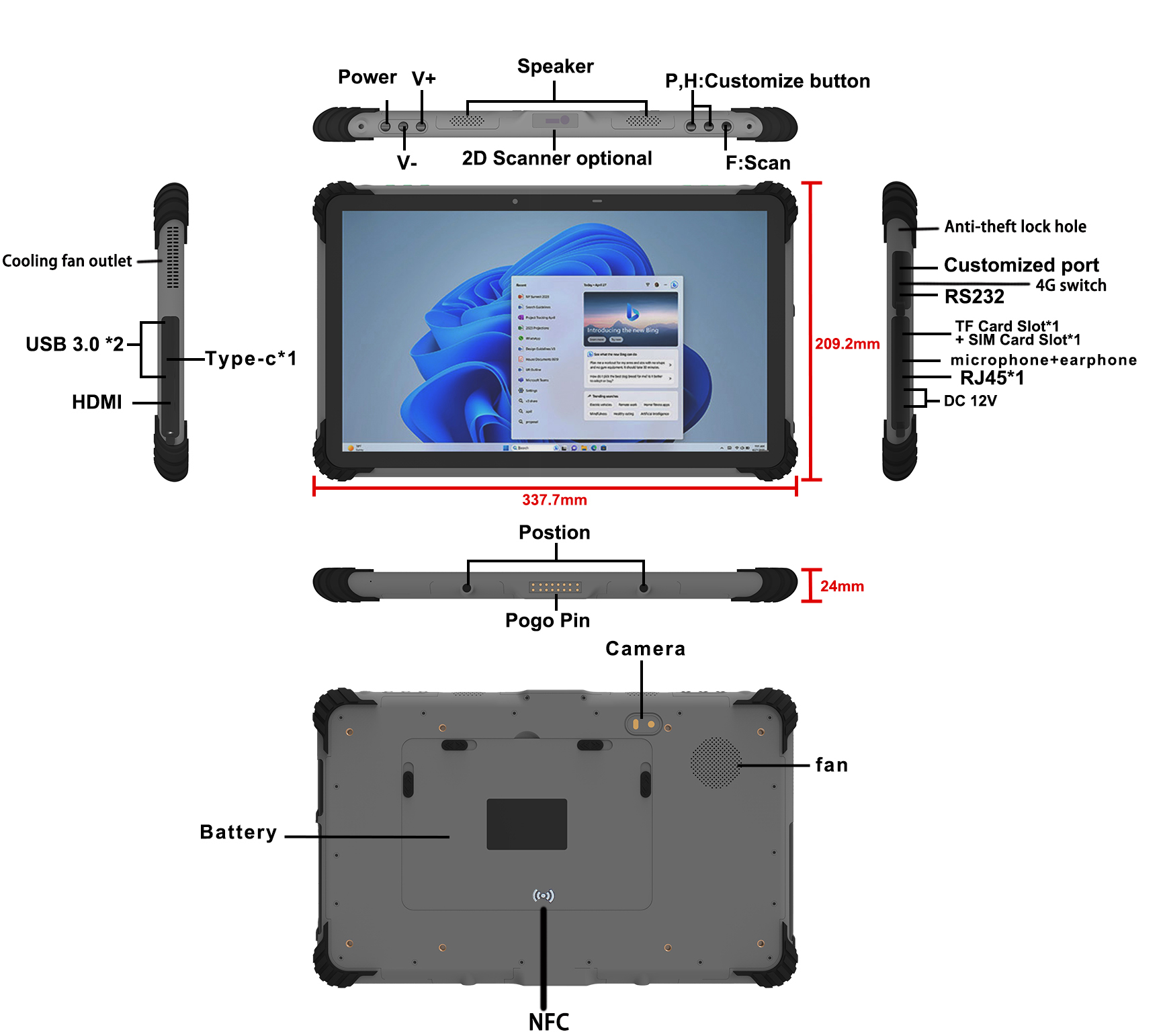

Interface
in/out port
1. Type-A:USB3.0*2
2. Type-C:Supports fast charging (65W)
3. HDMI:HDMI Type A,Audio and video output
4. Anti-theft lock hole
5. Aviation interface x2: customized interface&RS232
(RS232 not fully functional, only TX RX GND)
6. Card slot: SIM card slot+TF card slot
(TF card supports hot swap/SIM card does not support hot swap)
7. Headphone Jack:∮3.5mm Standard headphone interface
8. Ethernet RJ45:10/100/1000M
9. DC power interface:DC 12V 3A ∮4.0mm power interface

Pogopin definitionBottom 16PIN: USB2.0 * 1+RS232 * 1+charging
MaterialABS/PC/rubber TPU/aluminum
ButtonV+ -, Power, P, F, H
2D barcode moduleOptionalHoneywell N4680 optional
Accessories1. USB cable
2. Adapter
3. Handstrap
4. Car charger optional
5. White box, no logo

proof rate1. water proof IP65
2. Drapping proof 1.2 meter

Certification1. 810G
2. CE,FCC

Temperature1. storate temperature -25 to 80 degree
2. operation temperature -20 to 55 degree


Case

Download

ST13-U Data Download

Sincoole specializes in the design and production of rugged devices, with 10 years of industry experience. Our expertise lies in rugged tablets, handheld devices, and industrial computers, deeply rooted in various industries such as industrial applications, new energy applications, medical applications, outdoor data collection, chemical applications, aerospace, and military applications, empowering enterprises. We look forward to collaborating with you.
