13.3 inch 8000mAh Intel Celeron N5100 Rugged Tablet
Product Highlights:
Operating System: Windows 11 Pro
Processor: Intel Celeron N5100 (up to 2.80GHz)
Graphics: UHD Graphics 24 EUs, Full HD support
Memory & Storage: 8GB RAM, 256GB ROM (expandable)
Display: 13.3-inch FHD, 400-450 nits, 10-point touchscreen
Camera: 13MP rear camera
Battery: 8000mAh
Connectivity: 4G LTE, WiFi, Bluetooth, NFC, GPS
Ports: USB 3.0, HDMI, Ethernet, RS232
Durability: IP65, MIL-STD-810G certified
Additional Features: Barcode scanning (optional)
Operating Temperature: -20°C to 55°C
Key Advantages:
Rugged design with high durability, versatile connectivity, bright touch-enabled display, long battery life.
Specifications
| ITEM | DESCRIPTION | detail |
| OS | Windows 11 pro | |
| CPU | Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz) | Trubo can reach 2.80GHz |
| GPU | UHD Graphics 24 EUs | |
| RAM/ROM | 8GB/256GB | 4GB/64GB Optional |
| LCD | 13.3 inch 1920*1080 | 400nits(Min) ~ 450nits(TYP) |
| Touch screen | 10 point touch support thin glove touch support Stylus | |
| Camera | 5M/13M | |
| Power and battery | 8000mAh, 7.6V lithium battery(60.80Wh) | |
| DC4.0*1.7mm, 12V DC input | ||
| WWAN | 4G Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 WCDMA: B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8 | Module: SLM770A (EC25-AUX in North America) |
| GPS | Beidou, GPS, Glonass | |
| WiFi | 802.11a/b/g/n/ac wireless internet Wireless AP ( Mobile AP )2.4G, 5G | Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1) |
| Bluetooth | 4.2 version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO/IEC14443A |
| Speaker | 8Ω 1.5 watt*2 | |
| Sensor | 1. Light Sensor 2. Acceleration Sensor 3. G-Sensor | |
| Size | 330*205*19.5mm | |
| Weight | 1450±50g | |
| Multi-media (Hardware decoding) | Photo Viewer: BMP, JPG, GIF, PNG | |
| Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | ||
| Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | ||
| Language | multi language | |

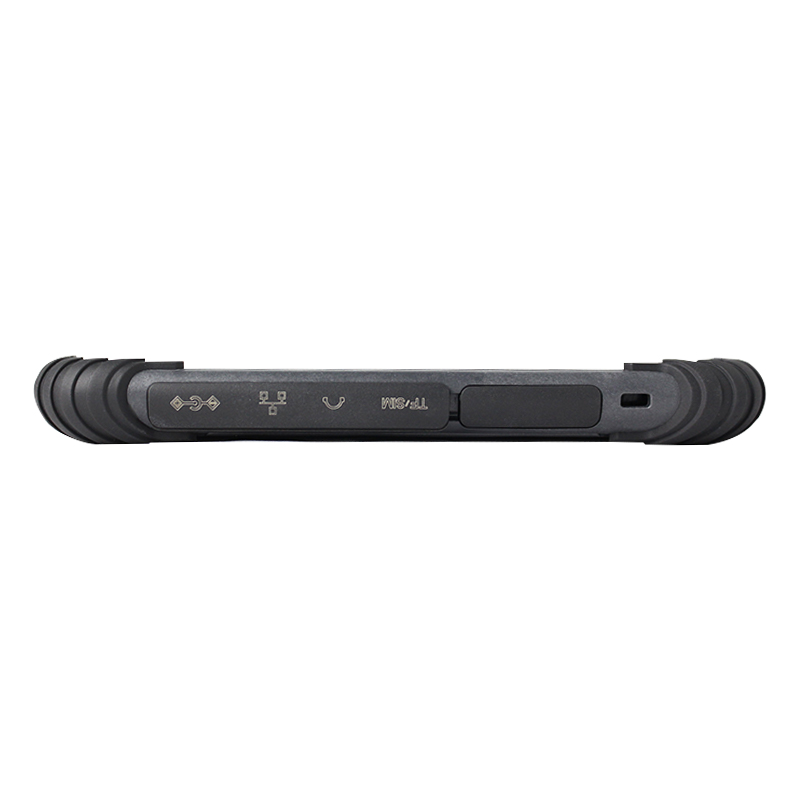

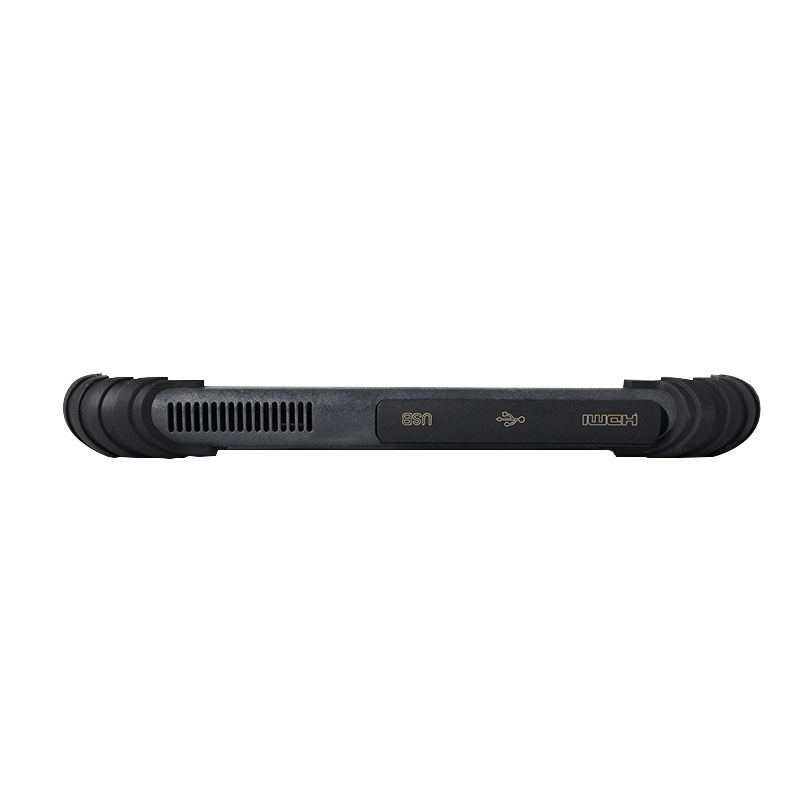

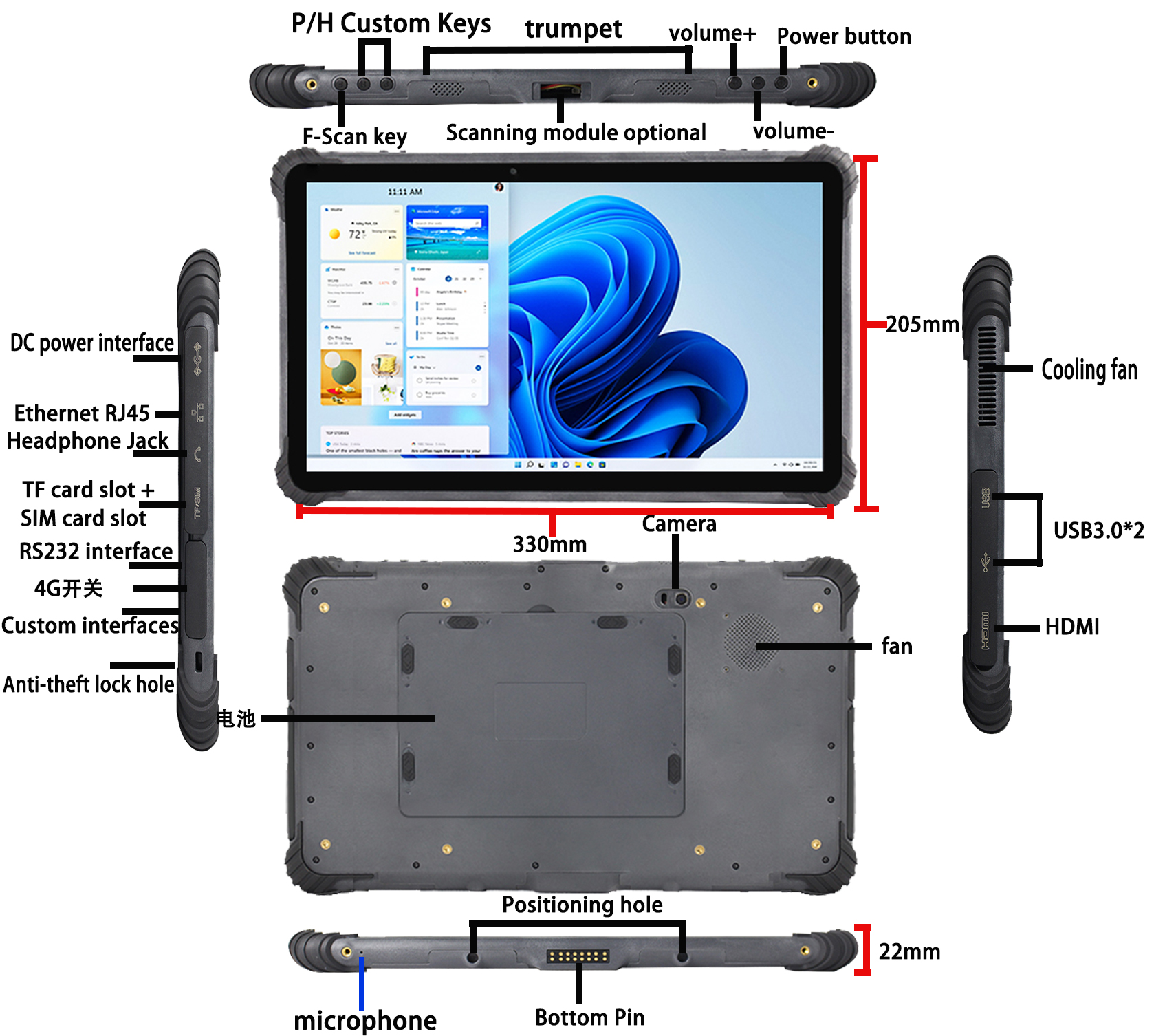

| Interface in/out port | 1. Type-A：USB3.0*2 2. HDMI：HDMI Type A，Audio and video output 3. Anti-theft lock hole 4. Aviation interface x2: customized interface&RS232 (RS232 not fully functional, only TX RX GND) 5. Card slot: SIM card slot+TF card slot 6. Headphone Jack：∮3.5mm Standard headphone interface 7. Ethernet RJ45：10/100/1000M 8. DC power interface：DC∮4.0mm power interface | |

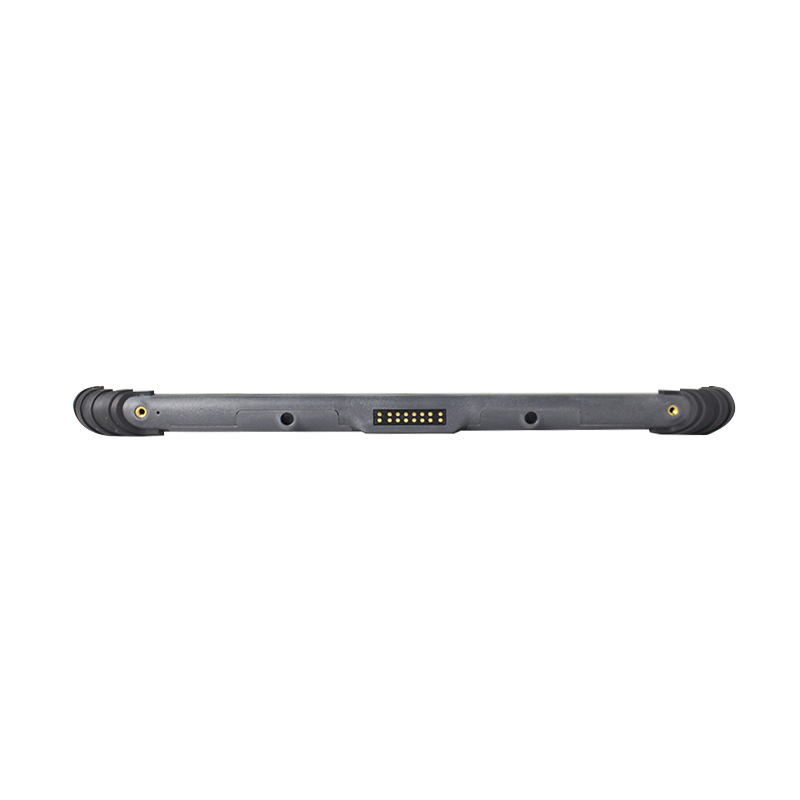

| Pogopin definition | Bottom 16PIN: USB2.0 * 1+RS232 * 1+charging | |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P, H (Default No Functionality) |
| 2D barcode module | Optional | Honeywell N4680 optional |
| Accessories | 1. USB cable 2. Adapter 3. Handstrap 4. Car charger optional 5. White box, no logo | |
| proof rate | 1. water proof IP65 2. Drapping proof 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | 1. storate temperature -25 to 80 ℃ 2. operation temperature -20 to 55 ℃ |
Case
Download
ST13-J Data Download
Sincoole specializes in the design and production of rugged devices, with 10 years of industry experience. Our expertise lies in rugged tablets, handheld devices, and industrial computers, deeply rooted in various industries such as industrial applications, new energy applications, medical applications, outdoor data collection, chemical applications, aerospace, and military applications, empowering enterprises. We look forward to collaborating with you.
