10.1 inch 2D/fingerprint/ultra-high frequency Android Rugged Tablet
ST11-A7 Rugged Tablet Overview
The ST11-A7 Rugged Tablet is a high-performance, durable device powered by Android 13.0, designed for tough environments with advanced features. Key specifications include:
- Operating System: Android 13.0 with GMS support
- CPU: MTK MT6789 Octa-Core (2x Arm Cortex-A76 @ 2.2GHz, 6x Arm Cortex-A55 @ 2.0GHz)
- GPU: Mali-G57 MC2
- RAM/Storage:
- Standard: 8GB / 256GB
- Optional: 12GB/256GB, 6GB/128GB
- Display:
- 10.1-inch IPS, 1200x1920 resolution, 450 nits
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery:
- Main: 12000mAh, 3.8Vdc (45.6Wh)
- Secondary: 2400mAh
- Usage time: Up to 19 hours
- Standby time: Up to 23 days
- Connectivity:
- 4G LTE: FDD-LTE: B1/B2/B3/B5/B7/B8/B12/B17/B20/B28
- TDD-LTE: B34/B38/B39/B40/B41
- 3G WCDMA: B1/B2/B5/B8
- GPS: Beidou, GPS, GLONASS (WiFi/Bluetooth/GPS 3-in-1 module)
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 5.0
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Type-C x1 (OTG support)
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 3.5*12mm x1
- USB 2.0 x1
- RJ45 Ethernet x1
- RS232 x1
- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- Fingerprint scanner (E064N)
- UHF RFID (American/European standards, 1-2m built-in, 3-5m external reading distance)
- Accessories: Blue Box, DC Charger (5V 3A), carry strap, screw, wrist strap
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST11-A7 is perfect for industrial and outdoor applications, offering a robust combination of performance, durability, and versatile connectivity options.
Specifications
| ST11-A7 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 13.0 | Support GMS |
| CPU | MTK MT6789 (Octa Core, Octa Threads; 2.2GHz) | 2 × Arm Cortex-A76，Frequency up to 2.2GHz 6 × Arm Cortex-A55，Frequency up to 2.0GHz |
| GPU | Mali-G57 MC2 | |
| RAM/ROM | 8GB/256GB | 12GB/256GB; 6GB/128GB Optional |
| LCD | 10.1 inch; 1200*1920; 450nits | IPS Screen |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP; Flash light | |
| Power and Battery | Main battery: 12000mAh / voltage 3.8Vdc (45.6Wh) Secondary battery: 2400mAh | Charging time: 4H30min Usage time: about 19 hours (50% volume, 60% brightness, playing local 1080P video) Standby time: about 23 days (screen off standby) |
| WWAN | FDD-LTE: B1/B2/B3/B5/B7/B8/B12/B17/B20/B28 TDD-LTE: B34/B38/B39/B40/B41 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 | |
| GPS | BDS, GPS, GLONASS | WiFi/Bluetooth/GPS 3-in-1 (MT6631B) |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | |
| BLUETOOTH | 5.0 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |
| Size | 273*172*20mm | |
| Weight | 1080±50g | |
| Language | Multi language | |

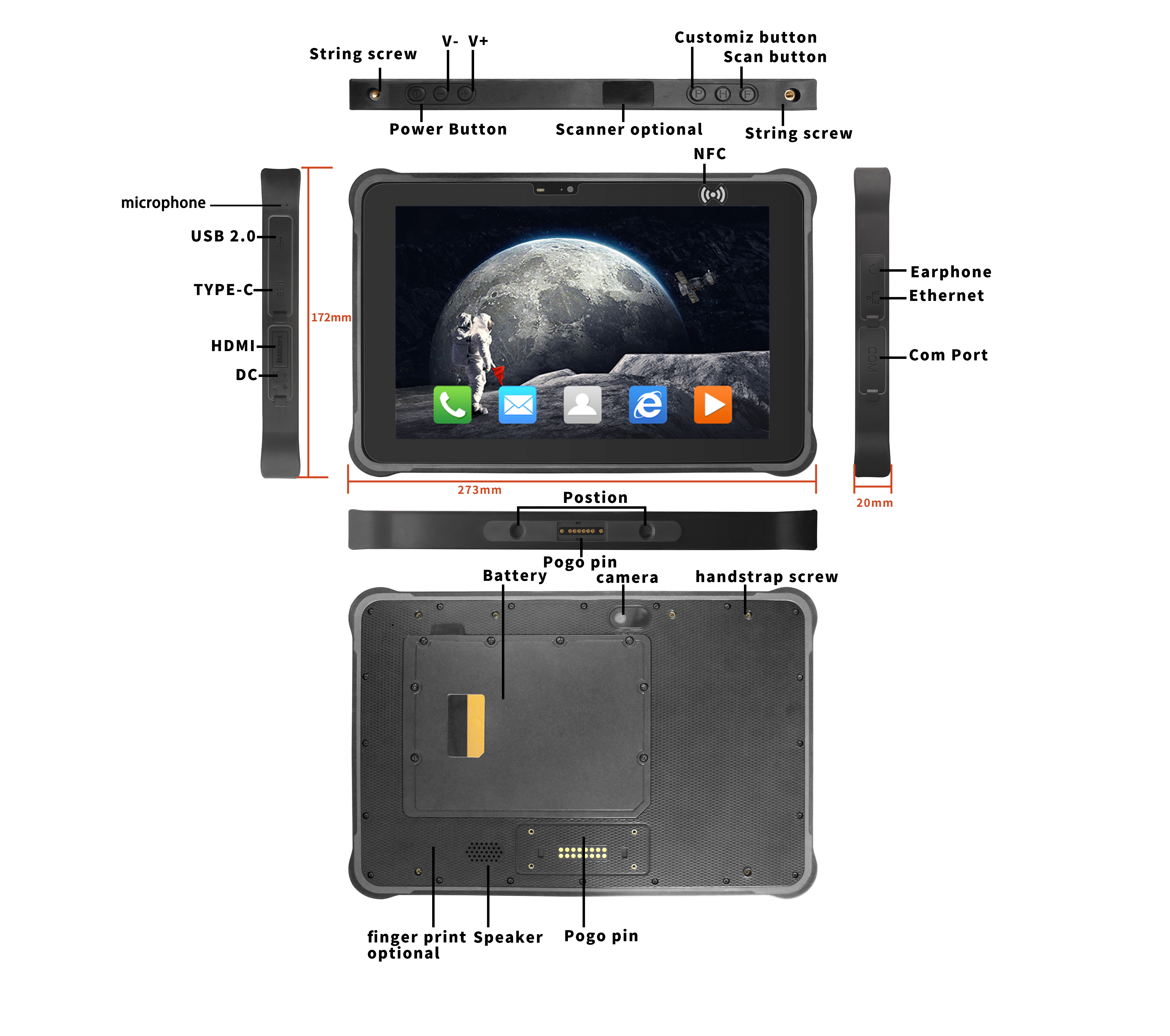

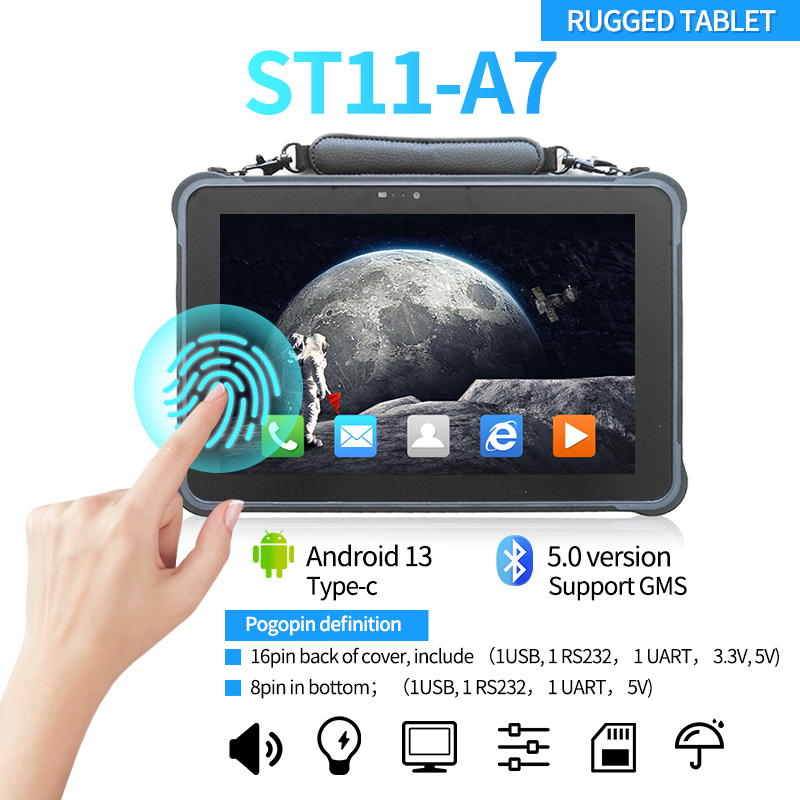

| Interface In/Out Port | 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*12mm 6. USB 2.0 *1 7. RJ45*1 8. RS232*1 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| The GMS version does not support customization of software and hardware, including the following 2D/fingerprint/ultra-high frequency | ||
| 1D/2D Barcode | Optional | Honeywell N4680 Optional |
| Fingerprint | Optional | E064N Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) Built in: card reading distance 1-2M External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) Built in: card reading distance 1-2M External: Card reading distance of 3-5M | ||
| Accessories | 1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Screw 5. Wrist strap | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C | |
