10.1 inch 1000nits Optional IPS Screen Android Rugged Tablet
ST11-A5 Rugged Tablet Overview
The ST11-A5 Rugged Tablet is a durable, high-performance device powered by Android 11, designed for challenging environments with a strong set of features. Key specifications include:
- Operating System: Android 11
- CPU: MTK MT8788 Octa-Core (4x Cortex-A53 & 4x Cortex-A73 @ 2.0GHz)
- GPU: ARM Mali-G72 MP3
- RAM/Storage:
- Standard: 4GB / 64GB
- Optional: 8GB / 256GB
- Display:
- 10.1-inch IPS, 1200x1920 resolution, 450 nits (1000 nits optional)
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery:
- Main: 12000mAh, 3.8Vdc (45.6Wh)
- Secondary: 2400mAh
- Charging time: ~5 hours
- Usage time: ~24 hours (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE: TDD-LTE: B34/B38/B39/B40/B41/B66
- FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
- 3G WCDMA: B1/B2/B4/B5/B8
- GPS: Beidou, GPS, GLONASS (WiFi/Bluetooth/GPS 3-in-1 module)
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 4.2
- NFC: 13.56 MHz, 1-3cm range (ISO/IEC 14443A/B, ISO/IEC 15693)
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Type-C x1 (OTG support)
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 3.5*12mm x1
- USB 2.0 x1
- RJ45 Ethernet x1
- RS232 x1
- HDMI x1 (only in 8GB/256GB variant)
- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680, NLS-N1, LV3596)
- UHF RFID (American/European standards, 1-2m built-in, 3-5m external reading distance)
- Fingerprint scanner (AFM60)
- Accessories: Blue Box, DC Charger (5V 3A), carry strap, screw, wrist strap
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST11-A5 is ideal for industrial and outdoor use, offering a robust combination of performance, durability, and versatile connectivity options.
Specifications
| ST11-A5 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 11 | |
| CPU | MTK MT8788 (Octa Core, Octa Threads; 2.0GHz) | Cortex-A53×4 @2.0GHz Cortex-A73×4 @2.0GHz |
| GPU | ARM Mali-G72 MP3 | |
| RAM/ROM | 4GB/64GB | 8GB/256GB Optional |
| LCD | 10.1 inch; 1200*1920; 450nits | IPS Screen; 1000nits(1200*1920) Optional |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP | Flash light |
| Power and Battery | Main battery: 12000mAh / voltage 3.8Vdc (45.6Wh) Secondary battery: 2400mAh | Charging time: about 5 hours Usage time: about 24 hours (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | TDD_LTE: B34/B38/B39/B40/B41/B66 FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 WCDMA: B1/B2/B4/B5/B8 CDMA2000:BC0 TD-SCDMA:B34/B39 GSM: 850/900/1800/1900 | |
| GPS | BDS, GPS, GLONASS | WiFi/Bluetooth/GPS 3-in-1 (MT6631N) |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | |
| BLUETOOTH | 4.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443A/B; ISO/IEC 15693 |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |
| Size | 273*172*20mm | |
| Weight | 1140±50g | |
| Language | Multi language | |

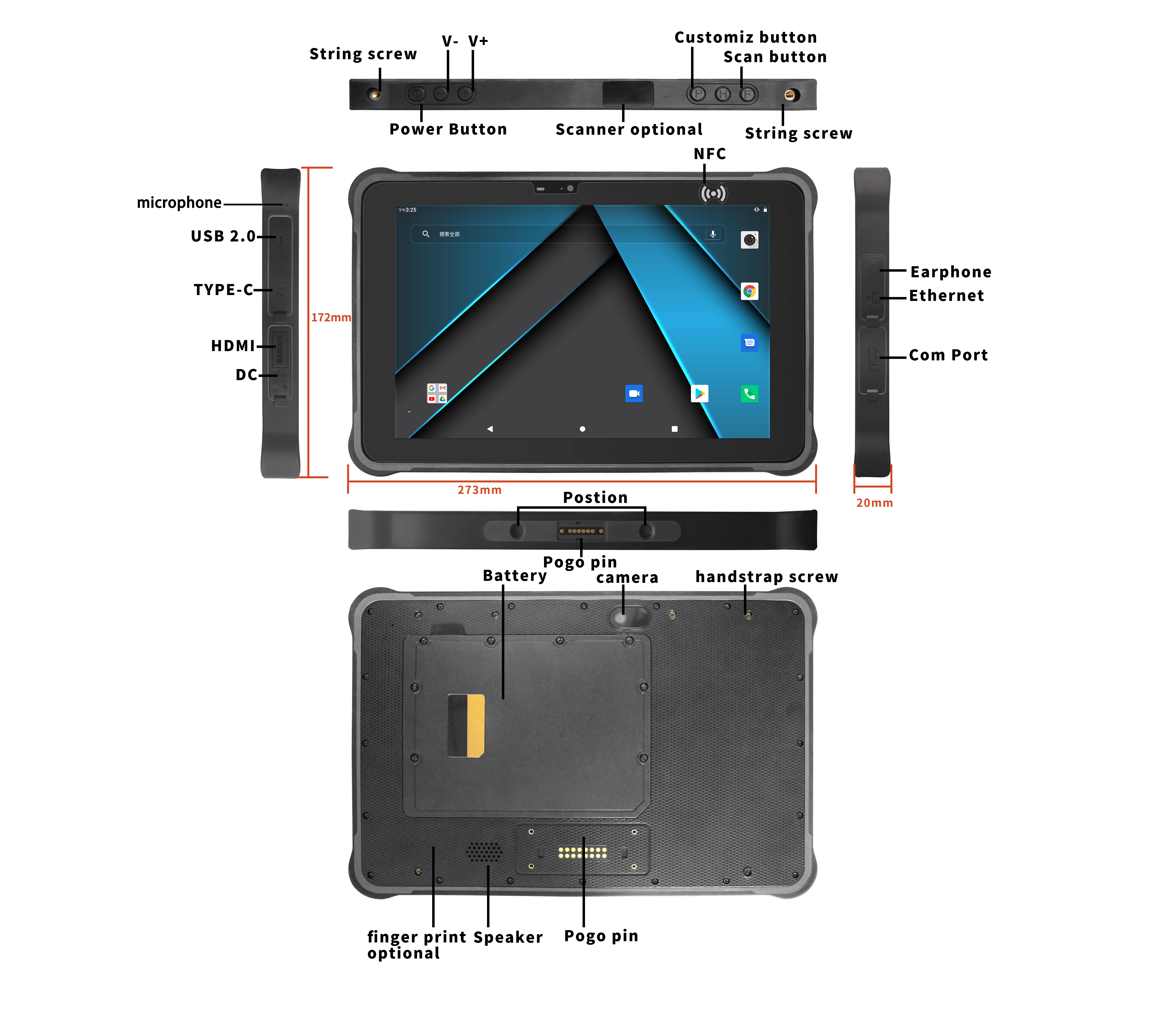

| Interface In/Out Port | 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*12mm 6. USB 2.0 *1 7. RJ45*1 8. RS232*1 9. HDMI*1 (Only supported by 8+256) | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional | Honeywell N4680 Optional NLS-N1 Optional LV3596 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) Built in: card reading distance 1-2M External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) Built in: card reading distance 1-2M External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | AFM60 Optional |
| Accessories | 1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Screw 5. Wrist strap | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
Case
Download
ST11-A5 Data Download
Sincoole specializes in the design and production of rugged devices, with 10 years of industry experience. Our expertise lies in rugged tablets, handheld devices, and industrial computers, deeply rooted in various industries such as industrial applications, new energy applications, medical applications, outdoor data collection, chemical applications, aerospace, and military applications, empowering enterprises. We look forward to collaborating with you.
