8 inch 1000nits IPS Screen Support for multiple OS Rugged Tablet
ST9-M Rugged Tablet Overview
The ST9-M Rugged Tablet is a versatile, durable device powered by Windows 10 Pro (with options for Windows 10 Home/IoT and Windows 11 Pro), designed for demanding environments. Key features include:
- CPU: Intel i5-8200Y (Dual-Core, up to 3.90GHz)
- GPU: Intel UHD Graphics 615
- RAM/Storage: 8GB/256GB, option for 16GB/512GB
- Display:
- 8-inch IPS, 1200x1920 resolution, 400 nits max brightness
- Optional 1000 nits display (800x1280)
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP
- Battery:
- 5000mAh, 7.7V
- Charging time: ~3 hours
- Usage time: 6.5 hours (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28, TDD-LTE B40, WCDMA B1/B2/B4/B5/B8, GSM/EDGE B2/B3/B5/B8
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G) – Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
- Bluetooth: 4.2
- GPS: BDS, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light, acceleration, gravity
- Interfaces:
- HDMI x1
- SIM Card Slot x1
- RS232 x1 (mini-USB)
- Earphone jack x1
- DC 4.0*15mm x1
- USB 3.0 x3
- Pogo pins for USB 2.0 and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707)
- UHF RFID (American/European standards, external reading distance 3-5m)
- Fingerprint scanner (ZAZ-0A0, 1020A)
- High precision GPS (UM960)
- Accessories: Blue Box, DC Charger (12V 4A), wrist strap, screw
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST9-M offers a robust combination of performance, rugged durability, and versatile connectivity, making it ideal for industrial, outdoor, and professional use.
Specifications
| ST9-M SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 10 Pro | Windows 10 Home / Iot Optional Windows 11 Pro Optional Ubuntukylin-20.04 Optional |
| CPU | Intel I5-8200Y (Dual Core, Quad Threads; 1.30GHz) | Trubo can reach 3.90GHz |
| GPU | Intel® UHD Graphics 615 | |
| RAM/ROM | 8GB/256GB | 16GB/512GB Optional |
| LCD | 8 inch; 1200*1920; 400nits (MAX) | IPS Screen; 1000nits(800*1280) Optional |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP | |
| Power and Battery | 5000mAh; 7.7V | Charging time: about 3H Usage time: 6H30min (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD-LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: B2/B3/B5/B8 | Module: SLM770A (EC25-AUX in North America) |
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1) |
| BLUETOOTH | 4.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Acceleration sensor 3. Gravity sensor | |
| Size | 234*144*16.8mm | |
| Weight | 700±50g | |
| Language | Multi language | |

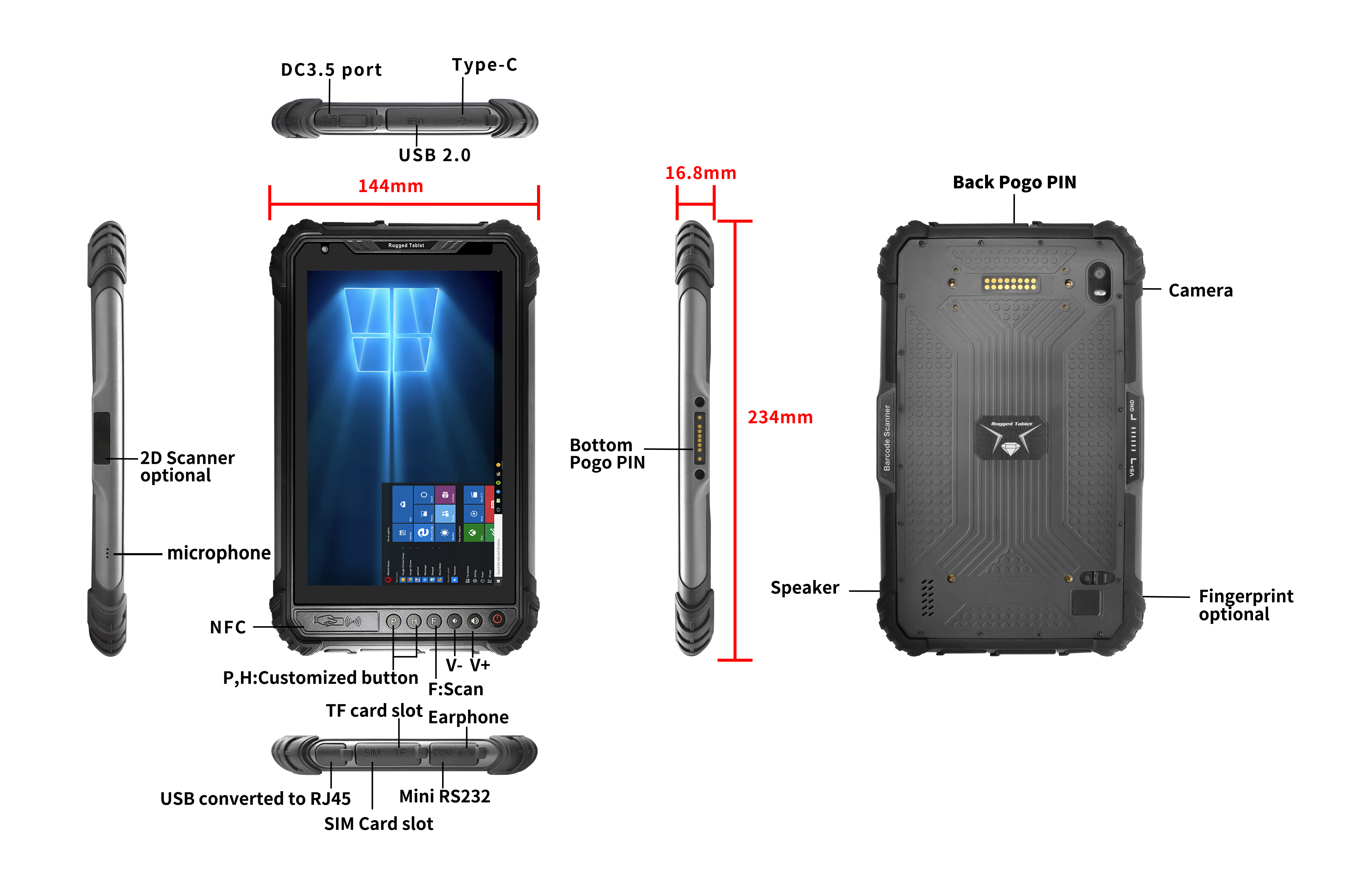

| Interface In/Out Port | 1. HDMI*1 2. SIM Card Slot*1 3. RS232*1(mini-USB) 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB 3.0 *3 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P, H (Default No Functionality) |
| 1D/2D Barcode | Optional | NLS-N1 Optional M1 Optional SE2707 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | ZAZ-0A0 Optional 1020A Optional |
| High Precision GPS | Optional | UM960 |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Wrist strap 4. Screw | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
