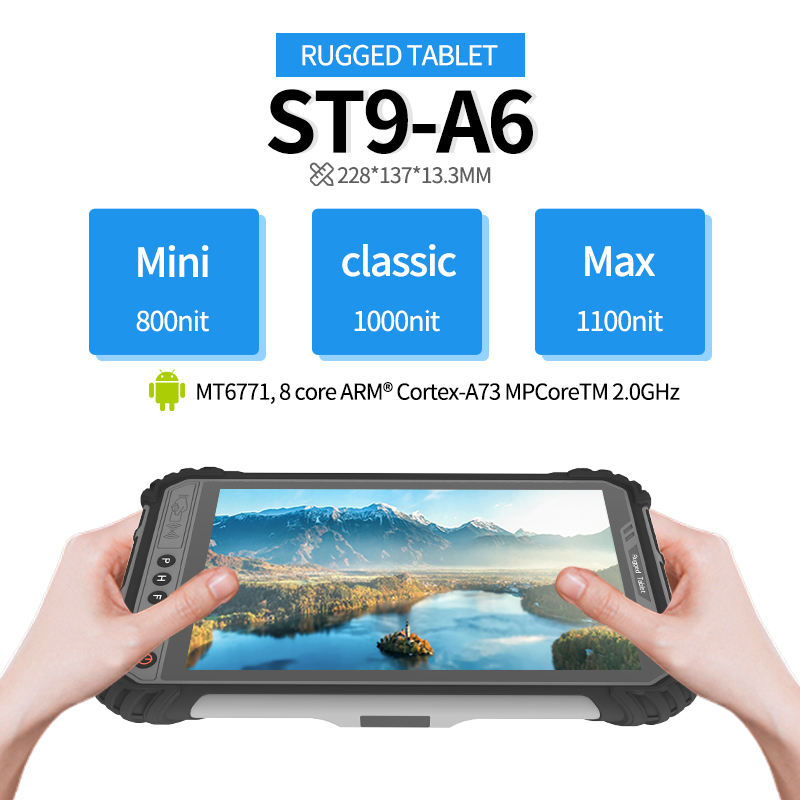

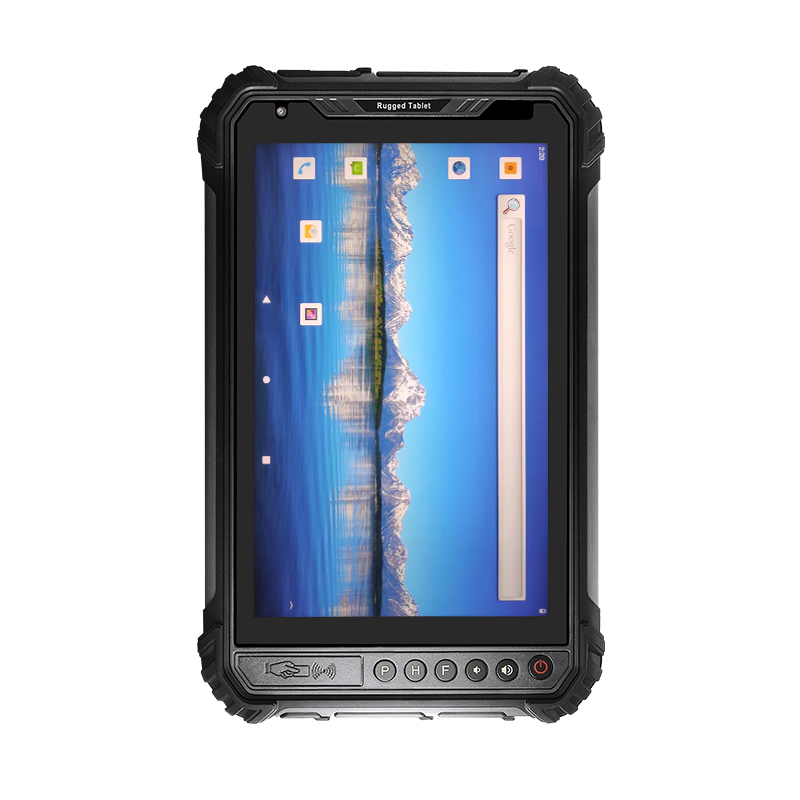

8 inch Outdoor 1000nits (MAX) Android Rugged Tablet
ST9-A6 Rugged Tablet Overview
The ST9-A6 Rugged Tablet is a durable, high-performance device powered by Android 11.0, designed for challenging environments with its robust feature set:
- CPU: MTK MT8788 Octa-Core (Cortex-A53×4 @2.0GHz, Cortex-A73×4 @2.0GHz)
- GPU: ARM Mali-G72 MP3
- RAM/Storage: 4GB/64GB, optional 8GB/256GB
- Display:
- 8-inch IPS, 800x1280 resolution
- 900 nits (typical), 1000 nits (max)
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 21MP with flashlight
- Battery: 10,000mAh, 3.8V
- Connectivity:
- 4G LTE: TDD-LTE B34/B38/B39/B40/B41/B66, FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28, WCDMA, CDMA2000, TD-SCDMA
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G) – WiFi/Bluetooth/GPS 3-in-1 (MT6631N)
- Bluetooth: 4.2
- GPS: BDS, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO/IEC 14443A/B, ISO/IEC 15693)
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Type-C x1, OTG
- SIM Card Slot x1
- TF Card Slot x1
- Earphone jack x1
- DC 3.5*15mm x1
- USB 2.0 x2
- RS232 x1 (mini-USB)
- Pogo pins for USB 2.0 and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707)
- UHF RFID (American/European standards, external reading distance 3-5m)
- Fingerprint scanner (ZAZ-0A0, 1020A)
- Accessories: Blue Box, DC Charger (5V 3A), carry strap, bag & screw
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST9-A6 is a rugged, versatile tablet that offers strong performance, extensive connectivity, and durability, making it ideal for industrial, outdoor, and professional applications.
Specifications
| ST9-A6 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 11.0 | |
| CPU | MTK MT8788 (Octa Core, Octa Threads; 2.0GHz) | Cortex-A53×4 @2.0GHz Cortex-A73×4 @2.0GHz |
| GPU | ARM Mali-G72 MP3 | |
| RAM/ROM | 4GB/64GB | 8GB/256GB Optional |
| LCD | 8 inch; 800*1280; IPS | 900nits (TYP) 1000nits (MAX) |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 21MP | Flash light |
| Power and Battery | 10000mAh; 3.8V | |
| WWAN | TDD-LTE: B34/B38/B39/B40/B41/B66 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 WCDMA: B1/B2/B4/B5/B8 CDMA2000:BC0 TD-SCDMA:B34/B39 GSM: 850/900/1800/1900 | |
| GPS | BDS, GPS, GLONASS | WiFi/Bluetooth/GPS 3-in-1 (MT6631N) |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | |
| BLUETOOTH | 4.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443A/B; ISO/IEC 15693 |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |

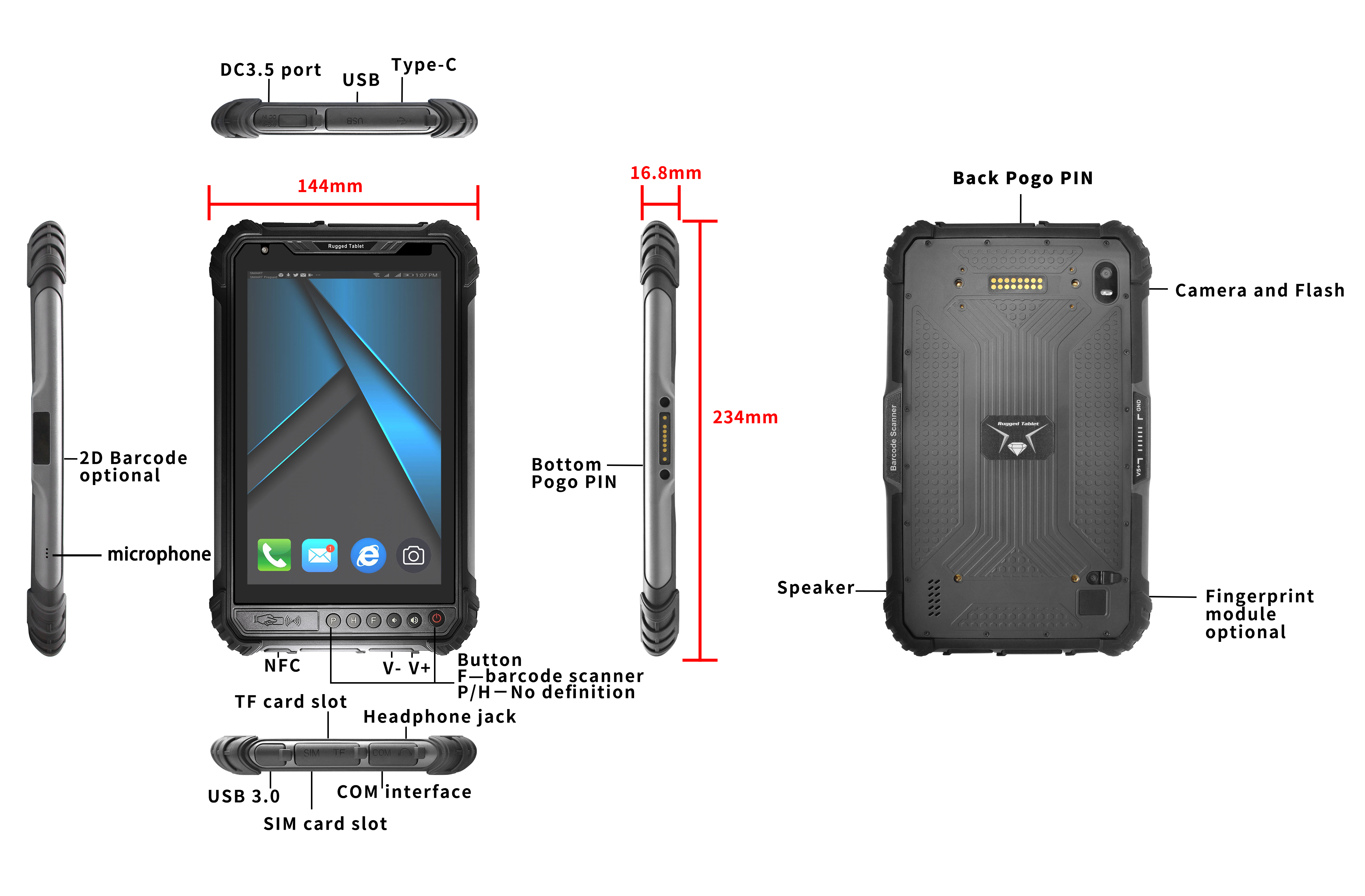

| Size | 234*144*16.8mm | |
| Weight | 630±20g | |
| Language | Multi language | |
| Interface In/Out Port | 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*15mm 6. USB 2.0 *2 7. RS232*1(mini-USB) | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional | NLS-N1 Optional M1 Optional SE2707 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | ZAZ-0A0 Optional 1020A Optional |
| Accessories | 1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Bag & Screw | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
