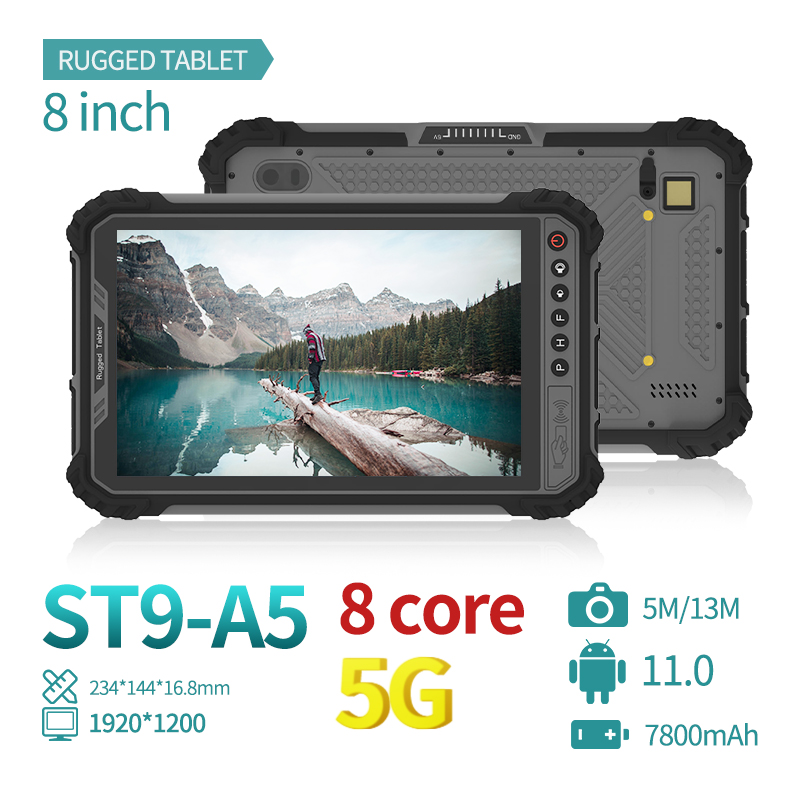

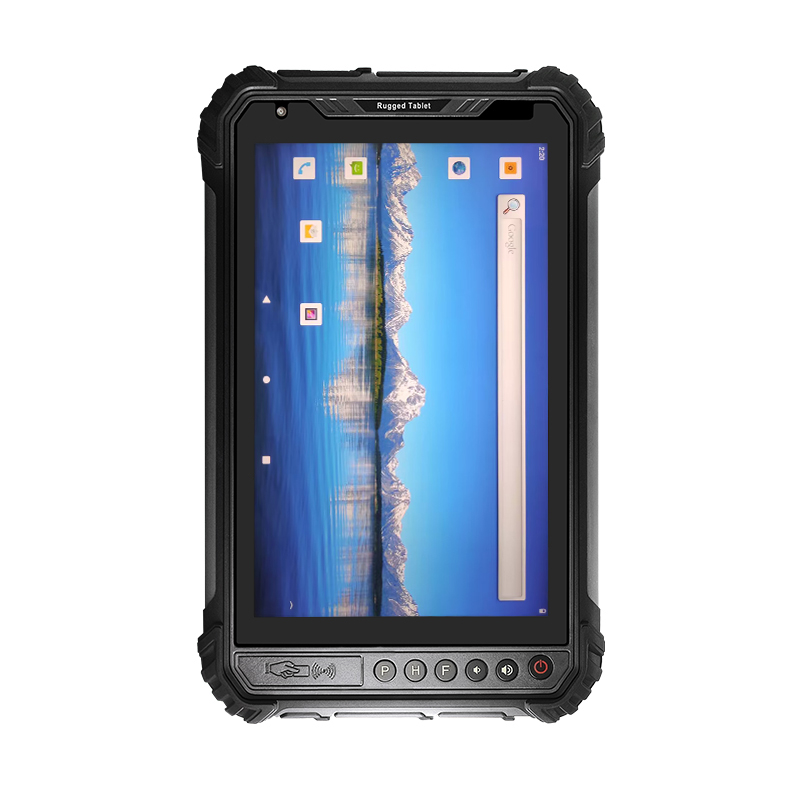

8 inch Indoor/factory/drop-proof and waterproof Android Rugged Tablet
Specifications
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 11.0 | |
| CPU | MTK MT8788 (Octa Core, Octa Threads; 2.0GHz) | Cortex-A53×4 @2.0GHz Cortex-A73×4 @2.0GHz |
| GPU | ARM Mali-G72 MP3 | |
| RAM/ROM | 4GB/64GB | 8GB/256GB Optional |
| LCD | 8 inch; 1200*1920; IPS | 300nits (TYP) 390nits (MAX) (800*1280)1000nits Optional |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Rear: 13MP | Flash light |
| Power and Battery | 10000mAh; 3.8V | Charging time: about 6H Usage time: about 29H (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | TDD_LTE: B34/B38/B39/B40/B41/B66 FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 WCDMA: B1/B2/B4/B5/B8 CDMA2000:BC0 TD-SCDMA:B34/B39 GSM: 850/900/1800/1900 | |
| GPS | BDS, GPS, GLONASS | WiFi/Bluetooth/GPS 3-in-1 (MT6631N) |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | |
| BLUETOOTH | 4.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443A/B; ISO/IEC 15693 |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |
| Size | 234*144*16.8mm | |
| Weight | 630±20g | |
| Language | Multi language | |

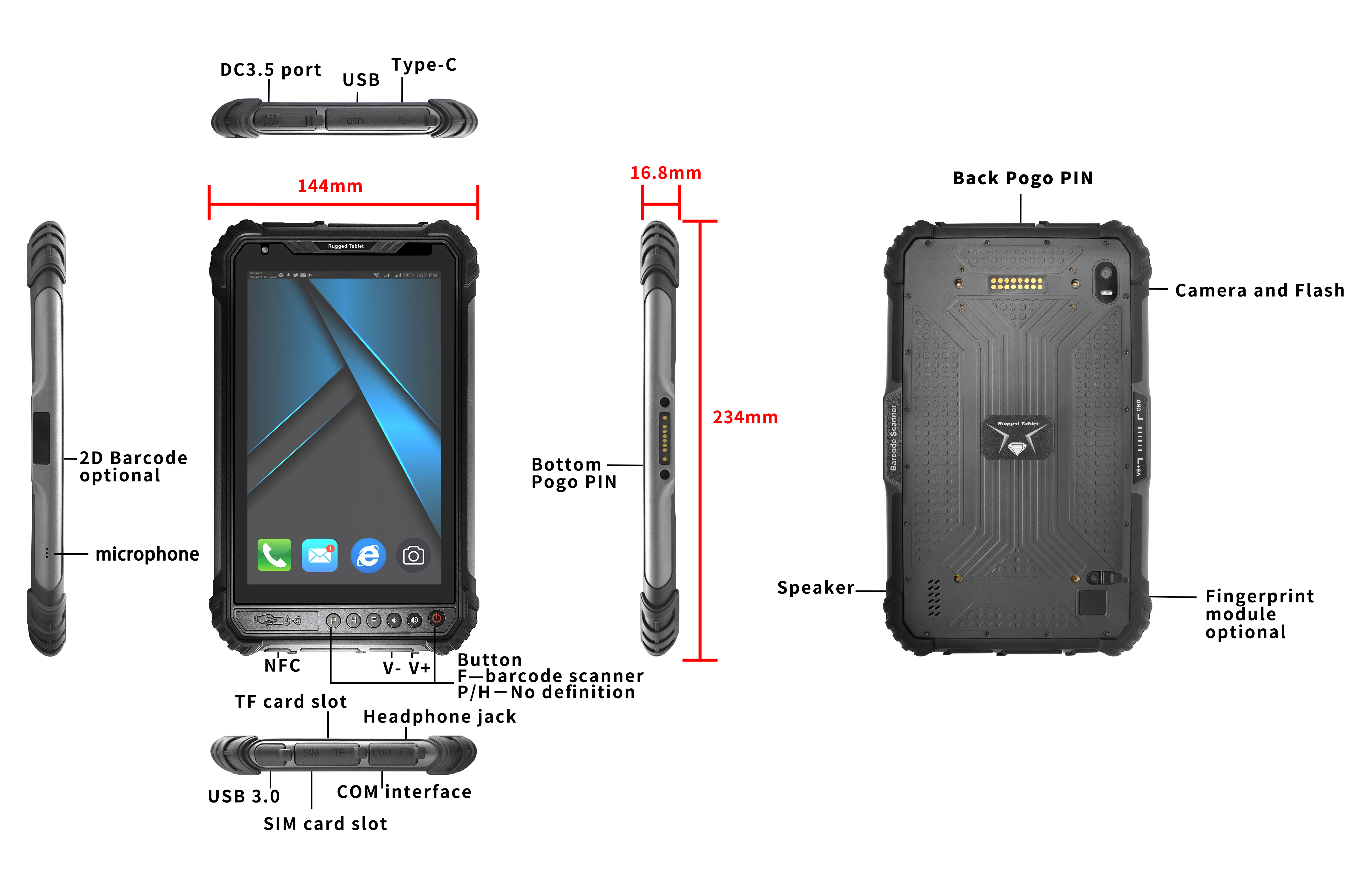

| Interface In/Out Port | 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*15mm 6. USB 2.0 *2 7. RS232*1(mini-USB) | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional | NLS-N1 Optional M1 Optional SE2707 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | ZAZ-0A0 Optional 1020A Optional |
| High Precision GPS | Optional | UM960 |
| Single Beidou module | Optional | ATGM332D-6N |
| Accessories | 1. Blue Box 2. DC Charger (5V 3A) 3. Wrist strap 4. Screw | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
Case
Download
ST9-A5 Data Download
Sincoole specializes in the design and production of rugged devices, with 10 years of industry experience. Our expertise lies in rugged tablets, handheld devices, and industrial computers, deeply rooted in various industries such as industrial applications, new energy applications, medical applications, outdoor data collection, chemical applications, aerospace, and military applications, empowering enterprises. We look forward to collaborating with you.
