10.1 inches Intel I5/I7 high performance Rugged Tablet
ST11-U Product Overview
The ST11-U is a rugged, high-performance tablet designed for versatile use in demanding environments. Key specifications include:
- Operating System: Windows 11 Pro (optional Windows 10 Pro / IoT)
- CPU: Intel i5-1235U (10 cores, 12 threads, base 1.3GHz, turbo 4.7GHz) / Optional Intel i7-1255U (base 1.7GHz)
- GPU: Intel® Iris® Xe Graphics 80EU / Optional Intel® Iris® Xe Graphics 96EU (i7 model)
- RAM/Storage:
- i5: 8GB/16GB RAM (up to 64GB), 128GB/256GB/512GB storage
- i7: 16GB/32GB RAM (up to 64GB), 128GB/256GB/512GB storage
- Display: 10.1-inch touchscreen, 1200x1920 resolution, 450 nits, 10-point touch, stylus support
- Camera: Front 5MP, Rear 8MP
- Battery: 6000mAh (45.6Wh), up to 5.5 hours usage time, supports 65W fast charging via Type-C
- Connectivity:
- WWAN: LTE/WCDMA/GSM support with SLM770A module (EC25-AUX in North America)
- GPS: BDS, GPS, GLONASS
- WiFi 6, Bluetooth 5.2
- NFC: 13.56MHz, ISO14443 Type A
- Ports:
- DC input, HDMI Type-A, USB 3.2 Gen1 (x2 Type-A, x1 Type-C with PD, DP, charging)
- 3.5mm headphone jack, Gigabit Ethernet (RJ45), RS232
- Durability:
- IP54 dust and water resistance
- Drop resistance up to 1.2 meters
- MIL-STD-810G certified
- Temperature: Operates from -20°C to 55°C
Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- UHF RFID reader (American/European standards)
- Fingerprint scanner (AFM60)
- High-precision GPS (UM960)
The ST11-U combines powerful performance, durability, and flexibility, making it ideal for industries requiring robust mobile solutions.
Specifications
| ST11-U SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 11 Pro | |
| CPU | Intel I5-1235U 10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.7GHz/power consumption 15W | I7-1255U Optional 10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W |
| GPU | Intel® Iris® Xe Graphics 80EU | I7: Intel® Iris® Xe Graphics 96EU |
| RAM/ROM | I5： RAM：8GB/16GB（Maximum 64GB） ROM: 128GB/256GB/512GB I7： RAM：16GB/32GB（Maximum 64GB） ROM: 128GB/256GB/512GB | RAM： LPDDR5 496 Ball ROM： M.2 2242 SATA（C500） |
| LCD | 10.1 inch; 1200*1920; 450nits | |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 8MP | |
| Power | 6000mAh，7.6V lithium battery (45.6Wh) | Charging time: 2H30min Usage time: 5H30min (50% volume, 60% brightness, playing local 1080P video) Standby time: about 6 days(screen off standby) |
| DC4.0, 12V DC input | Supports Type-C 65W fast charging | |
| WWAN | FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 | Module: SLM770A (EC25-AUX in North America) |
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | Intel® Wi-Fi 6 AX201 (WiFi/Bluetooth 2-in-1) |
| BLUETOOTH | 5.2 Version | |
| NFC | 13.56 MHz, Distance: 7-15mm | ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light Sensor 2. Acceleration Sensor 3. G-Sensor | |
| Size | 273*172*20mm | |
| Weight | 1190±50g | |
| Language | Multi language | |

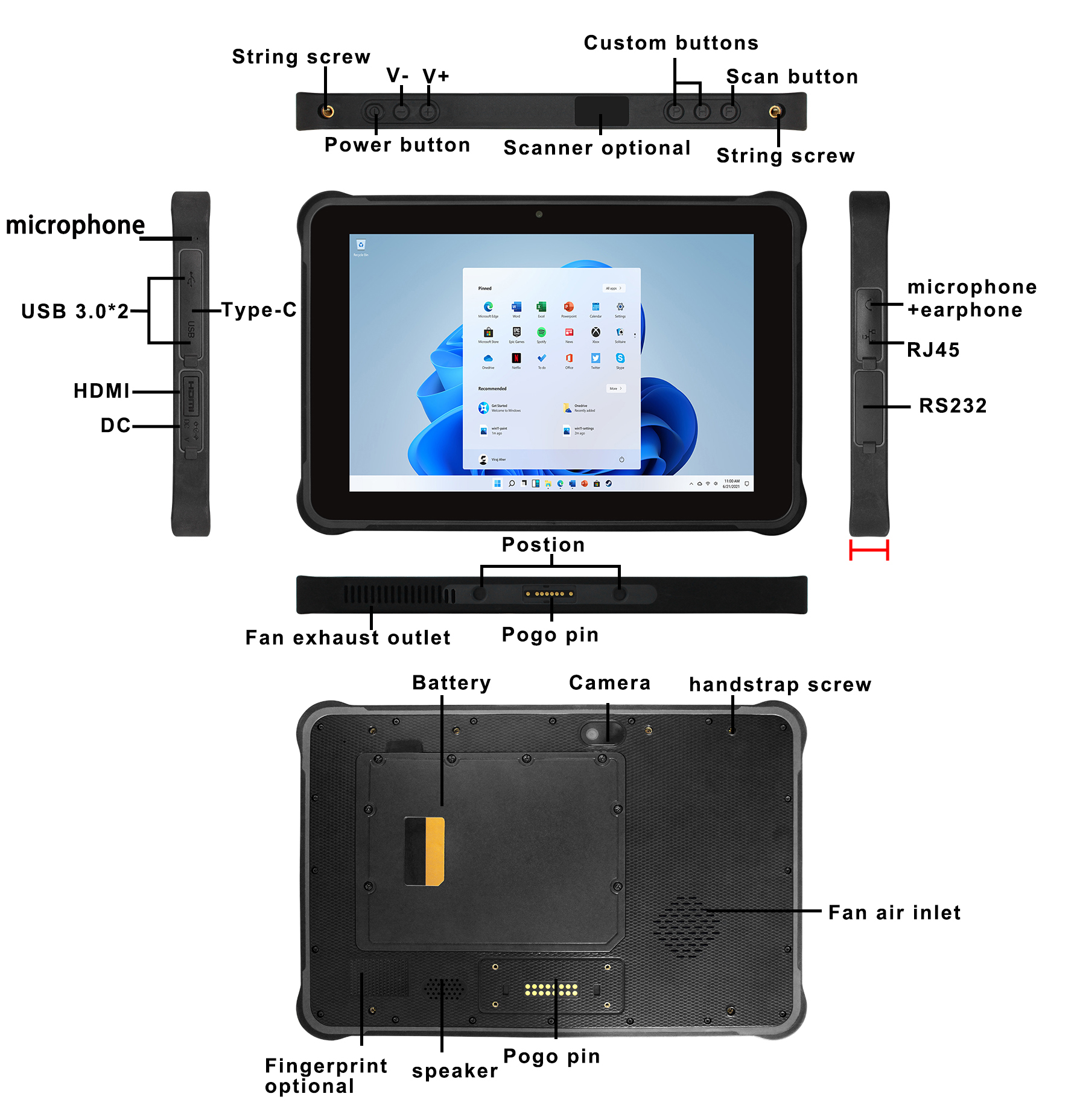

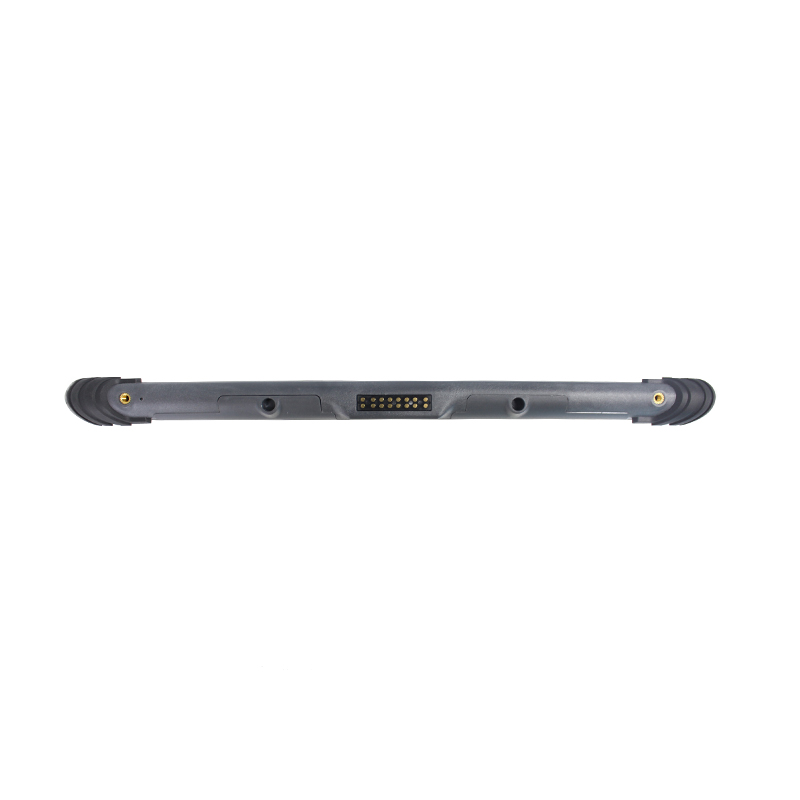

| Interface In/Out Port | 1. DC*1; 4.0*15mm 2. HDMI Type A x1,Audio and video output 3. USB Type_A：USB3.2 Gen1 x2 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging) 5. Earphone：∮3.5mm headphone jack x1 6. RJ45：Support Gigabit Ethernet 7. RS232：Standard DB9 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P, H (Default No Functionality) |
| 1D/2D Barcode | Optional | Honeywell N4680 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | AFM60 Optional |
| High Precision GPS | Optional | UM960 |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Screw 5. Wrist strap | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP54 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
