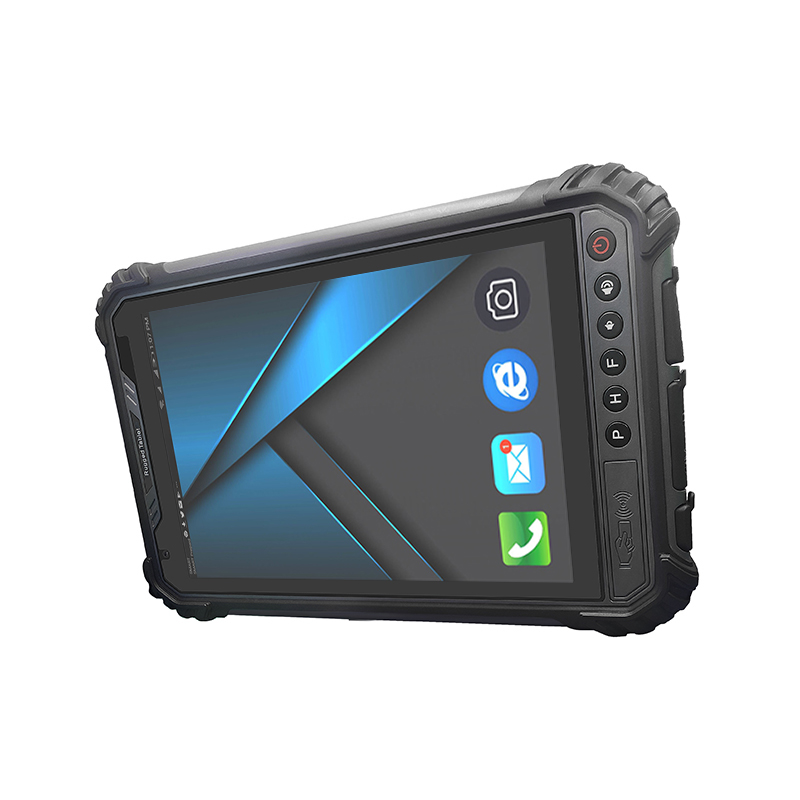

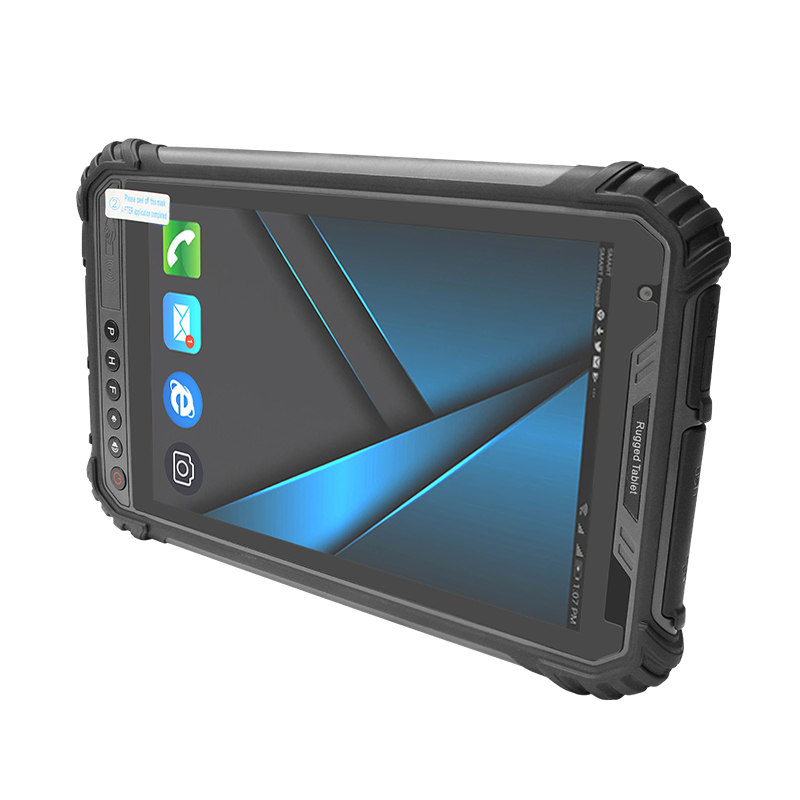

8 inch MTK MT6789 Android+NFC Rugged Tablet PC
ST9-A7 Product Overview
The ST9-A7 is a rugged, Android-based tablet designed for durability and performance in demanding environments. Key specifications include:
- Operating System: Android 13.0
- CPU: MTK MT6789 Octa-Core (2x Cortex-A76 @ 2.2GHz, 6x Cortex-A55 @ 2.0GHz)
- GPU: Mali-G57 MC2
- RAM/Storage:
- 8GB/256GB
- Optional: 12GB/256GB, 6GB/128GB
- Display: 8-inch IPS LCD, 1200x1920 resolution, 350 nits (typical), 390 nits (max); 1000 nits option available at 800x1280 resolution
- Touchscreen: 10-point touch, stylus support
- Camera: Front 5MP, Rear 13MP with flash
- Battery: 7800mAh
- Connectivity:
- WWAN: 4G LTE, 3G WCDMA, GSM with broad band support
- GPS: BDS, GPS, GLONASS
- WiFi: 802.11a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth 5.0
- NFC: 13.56MHz, ISO14443 Type A
- Ports:
- Type-C (OTG & charging), SIM card slot, TF card slot, earphone jack
- USB 2.0 x2, RS232
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Temperature: Operates from -20°C to 55°C
Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707 Optional)
- UHF RFID reader (American/European standards, 3-5m range)
- Fingerprint scanner (E064N, ZAZ-0A0, 1020A Optional)
- Docking station, car holder, car docking
The ST9-A7 offers a robust combination of performance, connectivity, and rugged durability, making it ideal for industries requiring reliable and durable mobile solutions.
Specifications
| ST9-A7 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 13.0 | |
| CPU | MTK MT6789 (Octa Core, Octa Threads; 2.2GHz) | 2 × Arm [email protected] 6 × Arm [email protected] |
| GPU | Mali-G57 MC2 | |
| RAM/ROM | 8GB/256GB | 12GB/256GB, 6GB/128GB Optional |
| LCD | 8 inch; 1200*1920; IPS | 350nits (TYP) 390nits (MAX) (800*1280)1000nits Optional |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP | Flash light |
| Power and Battery | 7800mAh; 3.8V | |
| WWAN | 4G LTE,3G WCDMA,GSM | FDD-LTE: B1/B2/B3/B5/B7/B8/B12/B17/B20/B28 TDD-LTE: B34/B38/B39/B40/B41 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| GPS | BDS, GPS, GLONASS | WiFi/Bluetooth/GPS 3-in-1 (MT6631B) |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | |
| BLUETOOTH | 5.0 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |

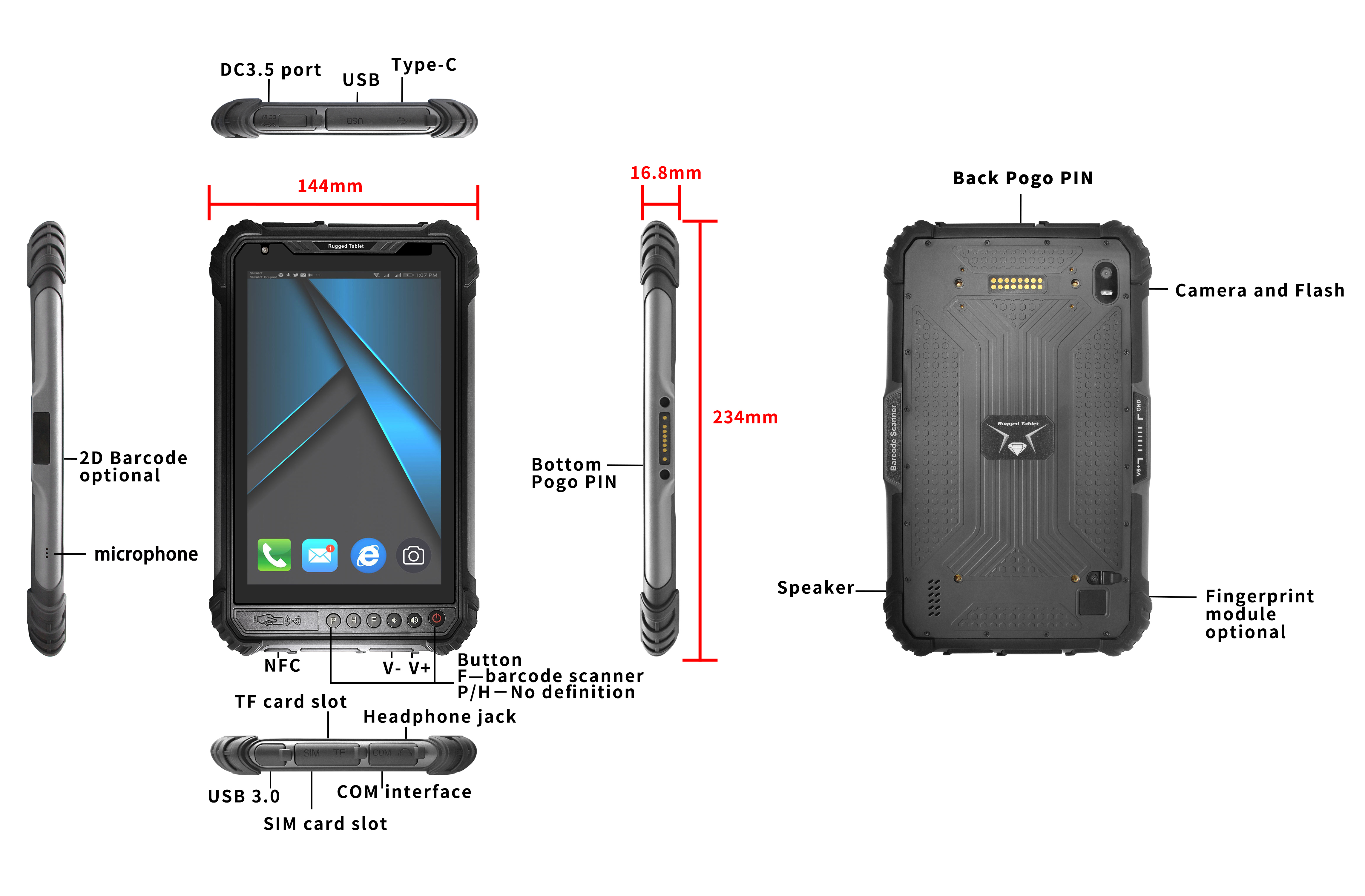

| Size | 234*144*16.8mm | |
| Weight | 630±20g | |
| Language | Multi language | |
| Interface In/Out Port | 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*15mm 6. USB 2.0 *2 7. RS232*1(mini-USB) | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional | NLS-N1 Optional M1 Optional SE2707 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | E064N Optional ZAZ-0A0 Optional 1020A Optional |
| Accessories | 1. Blue Box 2. DC Charger (5V 3A) 3. Wrist strap 4. Screw | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
