Intel Celeron N5100 5G Mini PC Ubuntu/Windows 10
SMP01-J Product Overview
The SMP01-J is a rugged, versatile computing device featuring 5G connectivity and a powerful Intel Celeron processor, designed for industrial and demanding environments. Key specifications include:
- Operating System: Windows 10 Pro (Ubuntu optional)
- CPU: Intel Celeron N5100, 4 cores, 4 threads, 1.1GHz (up to 2.8GHz)
- GPU: Intel UHD Graphics with 24 Execution Units (Jasper Lake)
- RAM/Storage:
- 4GB/64GB
- Optional: 8GB/256GB
- 5G & LTE:
- 5G NR SA: N1/N28/N41/N78/N79
- LTE-FDD, LTE-TDD, WCDMA support (Module: MeiG SRM821)
- WiFi & Bluetooth:
- WiFi 802.11 a/b/g/n/ac, dual-band (2.4G & 5G), Intel Dual Band Wireless-AC 7265 (WiFi/Bluetooth 2-in-1)
- Bluetooth 4.2
- Sensors: Acceleration sensor
- Size/Weight: 15514052.6mm, 1236g±20g (1228g without 5G module)
- Multimedia:
- Photo Viewer: BMP, JPG, GIF, PNG
- Video: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P)
- Audio: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (license required)
- Interfaces:
- DC 12V 3A, HDMI, USB 3.0 x1, USB 2.0 x3, 3.5mm headphone jack, RJ45 (FE & GE), RS232, RS485, SIM card slot, 5G antenna x4, WiFi antenna x2
- Customizable serial ports: RS232, RS485, RS422, CAN
- Additional Features:
- Power button with LED indicator
- Built-in RTC battery
- Built-in M.2 interface (supports SATA/PCIe SSD)
The SMP01-J combines robust connectivity, expandable storage, and a wide range of I/O options, making it ideal for industrial applications requiring high performance and flexibility.
Specifications
| SMP01-J-SPEC | ||
| Item | Parameter | Notes |
| OS | Windows 10 Pro | Ubuntu optional |
| CPU | Intel Celeron N5100 | 4 cores, 4 threads/main frequency 1.1GHz, up to 2.8GHz |
| GPU | Intel UHD Graphics 24 EUs (Jasper Lake) | |
| RAM/ROM | 4GB/64GB | 8GB/256GB optional |
| LTE | 5G NR SA: N1/N28/N41/N78/N79 LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8 | Module：MeiG SRM821 |
| WIFI | 802.11 a/b/g/n/ac wireless internet Wireless AP ( Mobile AP )2.4G, 5G | Module：Intel® Dual Band Wireless-AC 7265 (WIFI/Bluetooth 2-in-1) |
| Bluetooth | 4.2 version, backward compatibility | |
| Sensor | Acceleration Sensor | |
| Size | 155*140*52.6mm | |
| Weight | 1236g±20g | Net weight 1228g without 5G module (MeiG SRM821 ＜ 8g) |
| Multi-media | Photo Viewer | BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP to 1080P) | |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |
| Language | multi language | |

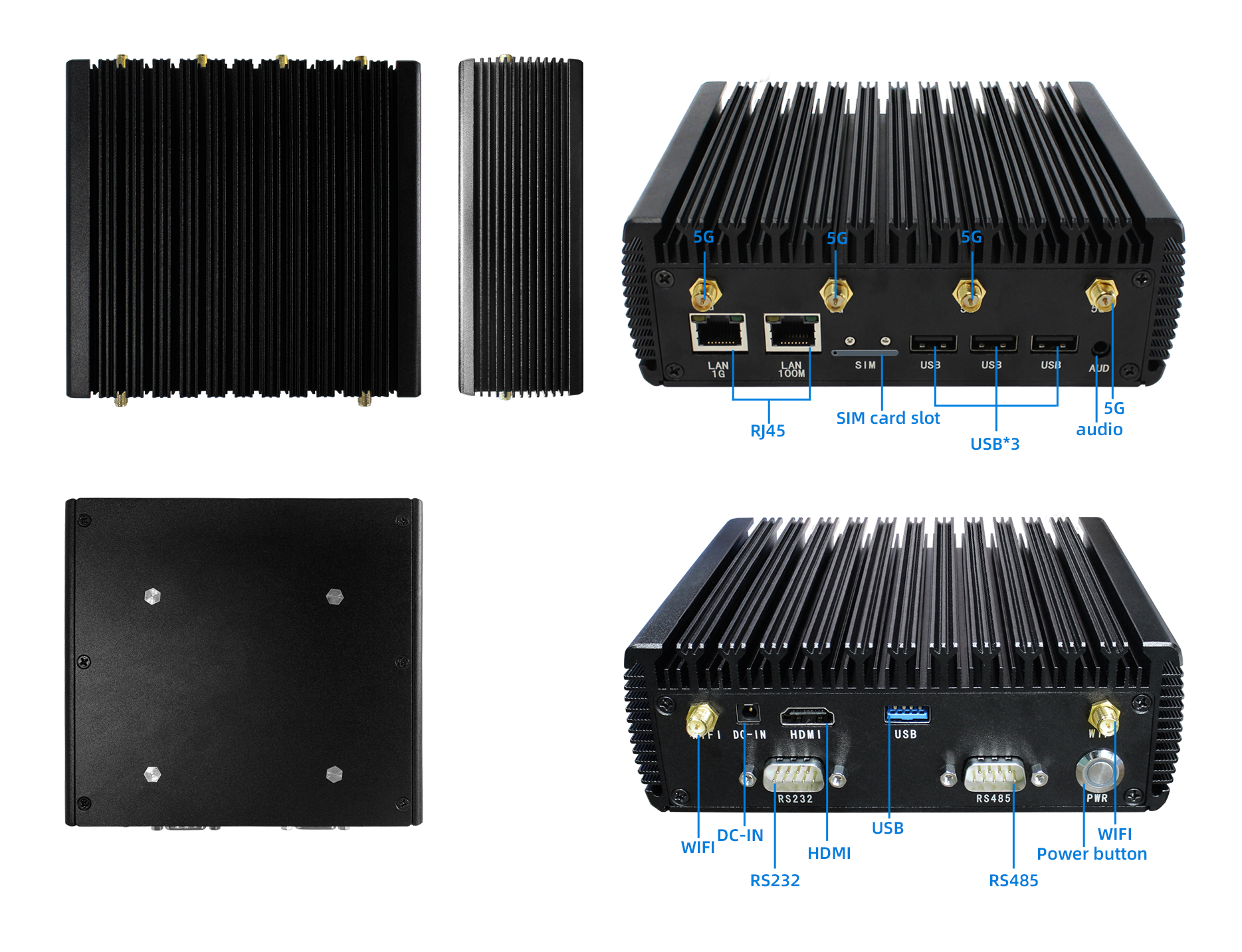

| Interface | 1. DC 12V 3A ∮4.0mm 2. HDMI Type A x1, Audio and video output 3. USB Type_A：USB3.0 x1 4. USB Type_A：USB2.0 x3 5. Earphone：∮3.5mm headphone jack x1 6. RJ45(FE)：Supports Fast Ethernet 7. RJ45(GE)：Support Gigabit Ethernet 8. RS232：Standard DB9 9. RS485：Standard DB9 10. SIM card slot: dual card single standby 11. 5G antenna interface x4 12. WiFi antenna interface x2 | Customizable serial port: 1. RS232 2. RS485 3. RS422 4. CAN |
| Button | Power | The power button lights red when in power on or standby mode |
| Other | 1. Built in RTC battery 2. Built in M.2 hard disk interface (supports SATA/PCIE SSD) | |
