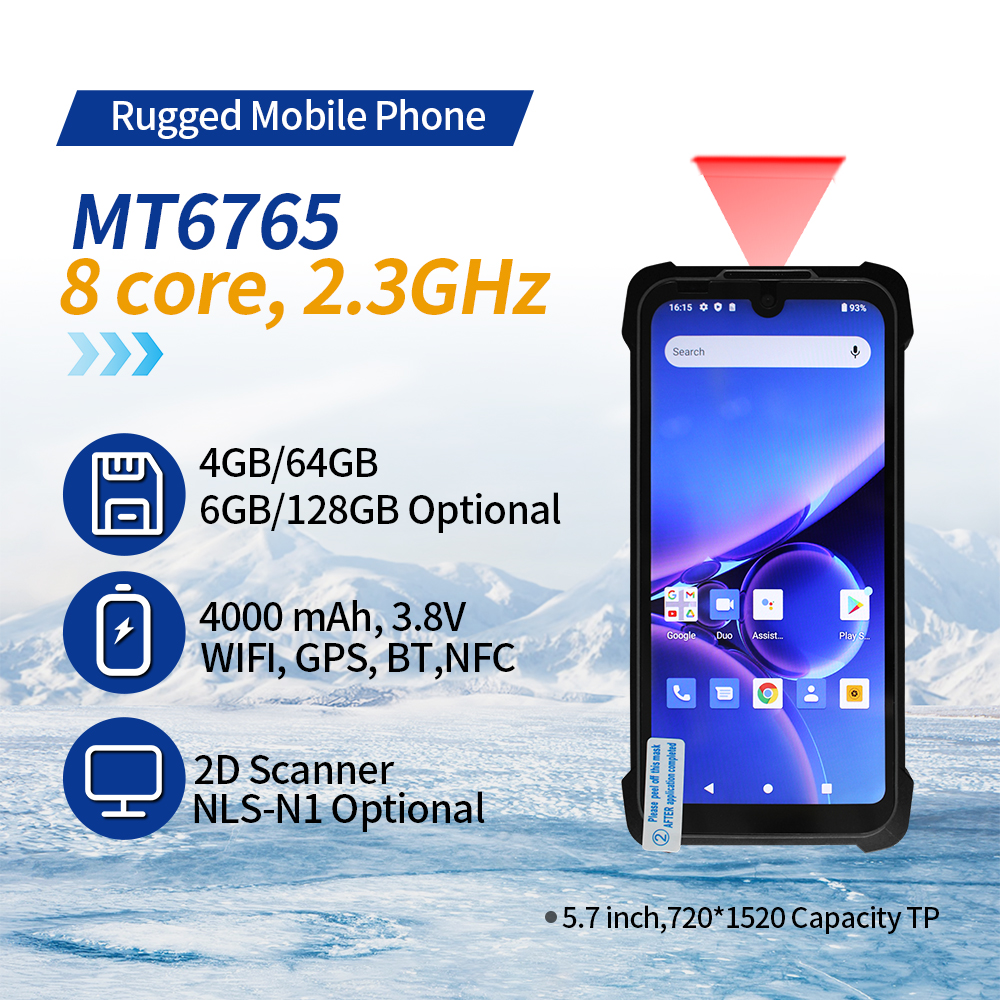

5.7 inch 4G LTE Outdoor Android Rugged terminal
SM5 Android Rugged Terminal Overview
The SM5 Android Rugged Terminal is a durable, high-performance device designed for challenging environments. Key specifications include:
- Operating System: Android 11.0
- CPU: MTK MT6765 Octa-Core (4x Cortex-A53 @1.8GHz, 4x Cortex-A53 @2.3GHz)
- GPU: IMG PowerVR GE8320
- RAM/Storage:
- 4GB/64GB
- Optional: 6GB/128GB
- Display: 5.7-inch, 720x1520, 450 nits brightness
- Touchscreen: 10-point touch, stylus support
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery:
- 4000mAh
- Charging time: 2h 30min
- Usage time: ~14h (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE, 3G WCDMA, GSM
- GPS: BDS, GPS, GLONASS
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 5.0
- NFC: 13.56 MHz (Model: PN553)
- Sensors: Light, Magnetic, Pressure, G-sensor, Distance, Acceleration, Gyroscope, Motor
- Size/Weight: 155x77.7x13.3mm, 240±20g
- Interfaces:
- Type-C x1, OTG
- Dual SIM card slot or SIM + TF card slot
- Buttons: V+/-, Power, SOS, Scan, Customized Button
- Optional 1D/2D Barcode Scanner (NLS-N1, M1, SE2707)
- Multimedia:
- Photo Viewer: BMP, JPG, GIF, PNG
- Video: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P)
- Audio: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (license required)
- Durability:
- IP65 dust and water resistance
- 1.5-meter drop resistance
- MIL-STD-810G certified
- Operating Temperature: -25°C to 50°C
- Storage Temperature: -40°C to 60°C
- Accessories: Box, Charger (5V 2A), Thimble
The SM5 is a rugged, versatile device built to withstand harsh conditions while offering robust performance and connectivity options. Ideal for industrial and outdoor use.
Specifications
| SM5 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 11.0 | |
| CPU | MTK MT6765 Octa Core; 2.3GHz | 4x Cortex-A53 @1.8GHz 4x Cortex-A53 @2.3GHz |
| GPU | IMG PowerVR GE8320 | |
| RAM/ROM | 4GB/64GB | 6GB/128GB Optional |
| LCD | 5.7 inch; 720*1520; 450nits | |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Rear: 13MP | Flash light |
| Power and Battery | 4000mAh; 3.8V | Charging time: 2H30min Usage time: about 14H(50% volume, 60% brightness, playing local 1080P video) |
| WWAN | 4G LTE,3G WCDMA,GSM | 4G Fre: FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20 TDD-LTE: B38/B39/B40/B41 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | |
| BLUETOOTH | 5.0 Version | |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.0 Watt | |
| NFC | 13.56 MHz | Model: PN553 |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope 8. Motor | |

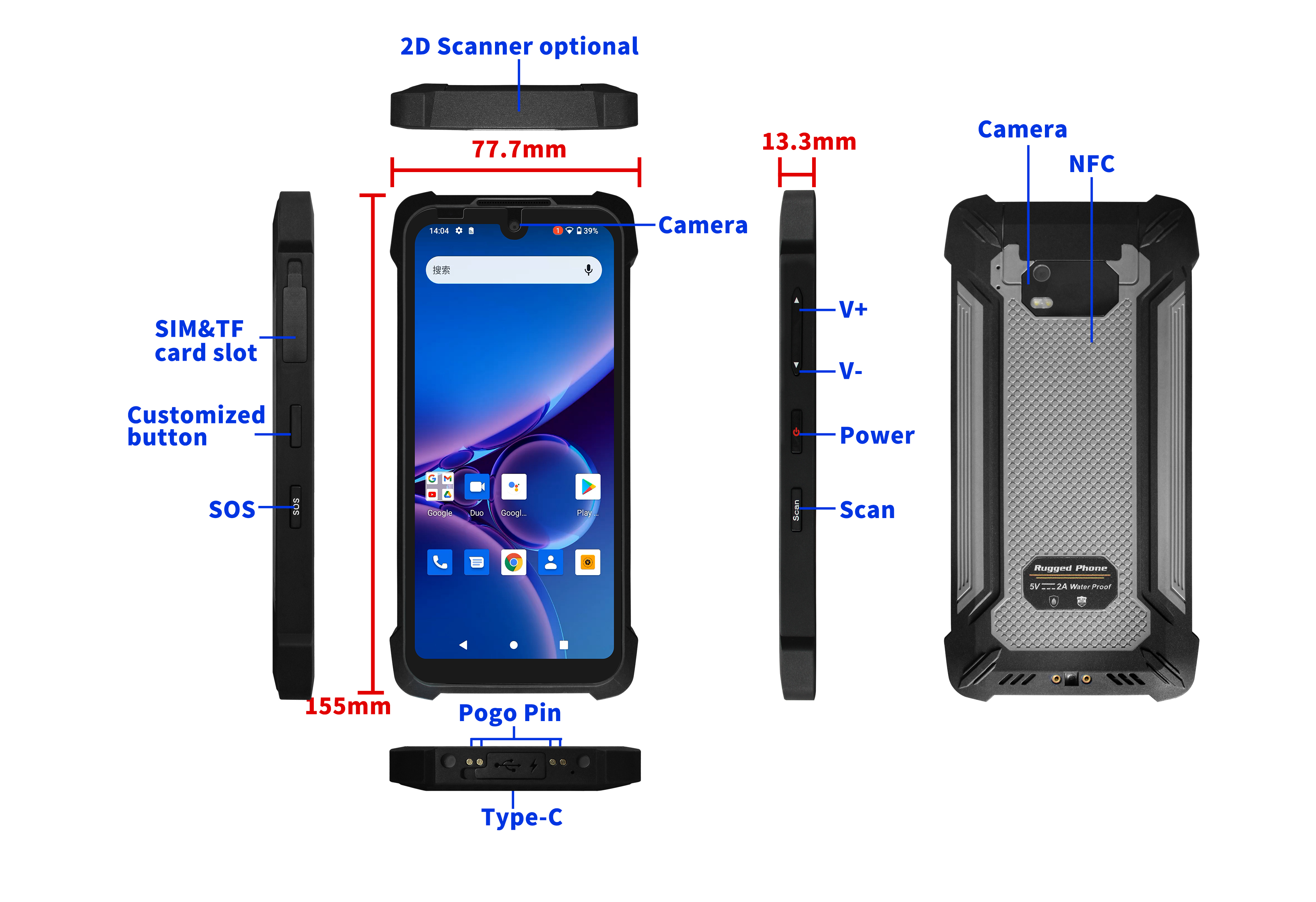

| Size | 155*77.7*13.3mm | |
| Weight | 240±20g | |
| Language | Multi language | |
| Interface In/Out Port | 1. Type-C *1; OTG 2. SIM Card Slot*2 or SIM+TF Card Slot | Bottom pogopin*4 |
| Button | V+ -, Power, SOS, Scan,Customized Button | |
| 1D/2D Barcode | Optional | NLS-N1 Optional M1 Optional SE2707 Optional |
| Accessories | 1. Box 2. Charger (5V 2A) 3. Thimble | |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.5 meters | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -40 °C to 60 °C Operation Temperature: -25 °C to 50 °C |
