8 inch Rockchip RK3588 1000nits HarmonyOS Rugged Tablet
ST9-R2 Rugged Tablet Overview
The ST9-R2 Rugged Tablet is a powerful, durable device running on the open-source HarmonyOS 4.1, designed for demanding environments. Key specifications include:
- Operating System: Open-source HarmonyOS 4.1
- CPU: Rockchip RK3588 Octa-Core (4x Cortex-A76 @ 2.4GHz, 4x Cortex-A55 @ 1.8GHz)
- GPU: ARM Mali G610
- RAM/Storage:
- Standard: 8GB / 256GB, 16GB / 256GB
- Optional: 8GB / 512GB, 16GB / 512GB
- Display:
- 8-inch IPS, 1200x1920 resolution
- High brightness option: 1000 nits
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery: 5000mAh, 7.7V
- Connectivity:
- 4G LTE: FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66, TDD-LTE: B40
- 3G WCDMA: B1/B2/B4/B5/B8
- GPS: GPS supported
- WiFi: 802.11 a/b/g/n/ac/ax, dual-band (2.4G & 5G), supports WiFi 6
- Bluetooth: 5.0
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Type-C x1 (OTG & fast charging support)
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 4.0*15mm x1
- USB 2.0 x1
- USB 3.0 x2
- RS232 x1 (mini-USB)
- HDMI x1
- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707)
- Accessories: Blue Box, DC Charger (12V 4A), carry strap, screw
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST9-R2 is ideal for industrial and outdoor applications, offering a rugged design combined with high performance, versatile connectivity, and a range of optional features for enhanced functionality.
Specifications
| ST9-R2 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Open source HarmonyOS 4.1 | |
| CPU | Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz |
| GPU | ARM Mali G610 | |
| RAM/ROM | 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional |
| LCD | 8 inch; 1200*1920; IPS | 1000nits (high brightness version only) |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP | Flash light |
| Power and Battery | 5000mAh; 7.7V | |
| WWAN | FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 | Module: SLM770A (EC25-AUX in North America) |
| GPS | GPS | |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G; Support WiFi6 | WiFi/Bluetooth 2-in-1 |
| BLUETOOTH | 5.0 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |

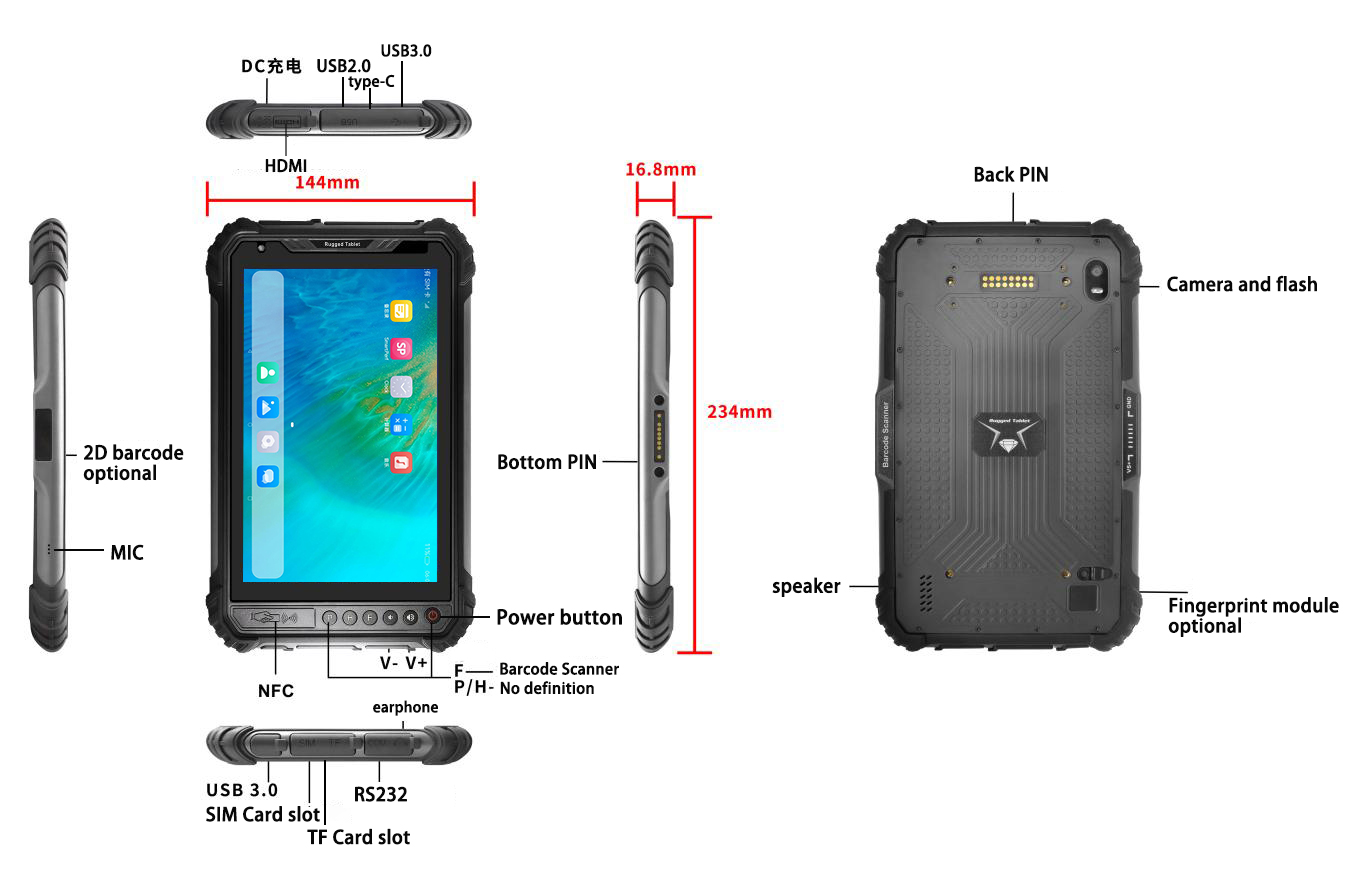

| Size | 234*144*16.8mm | |
| Weight | 700±50g | |
| Language | Multi language | |
| Interface In/Out Port | 1. Type-C *1 (Support OTG ; Support fast charging) 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB 2.0 *1 7. USB 3.0 *2 8. RS232*1 (mini-USB) 9. HDMI*1 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional | NLS-N1 Optional M1 Optional SE2707 Optional |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Screw | Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
