10.1 inch, China HarmonyOS Rugged Tablet
ST11-R2 Product Overview
The ST11-R2 is a rugged tablet built for durability and performance, featuring Open Source HarmonyOS. Key specifications include:
- Operating System: Open Source HarmonyOS 4.1
- CPU: Rockchip RK3588, Octa-Core (4x Cortex-A76 @ 2.4GHz, 4x Cortex-A55 @ 1.8GHz)
- GPU: ARM Mali G610
- RAM/Storage:
- 8GB/256GB, 16GB/256GB
- Optional: 8GB/512GB, 16GB/512GB
- Display: 10.1-inch IPS LCD, 1200x1920 resolution, 450 nits, 10-point touch, stylus support
- Camera: Front 5MP, Rear 13MP with flash
- Battery:
- 6000mAh, up to 8.5 hours usage time (50% volume, 60% brightness, playing 1080P video)
- Charging time: ~4 hours
- Connectivity:
- WWAN: LTE/WCDMA/GSM with SLM770A module
- GPS
- WiFi 6, Bluetooth 5.0
- NFC: 13.56MHz, ISO/IEC 14443A
- Ports:
- Type-C (OTG & fast charging), SIM card slot, TF card slot, earphone jack
- USB-A 2.0 & 3.0, RJ45, RS232, HDMI
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Temperature: Operates from -20°C to 55°C
Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- Docking station, car holder, car docking, Type-C 65W fast charger
The ST11-R2 is designed for robust performance in challenging environments, offering a blend of powerful hardware, connectivity, and durability.
Specifications
| ST11-R2 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Open source HarmonyOS 4.1 | |
| CPU | Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz |
| GPU | ARM Mali G610 | |
| RAM/ROM | 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional |
| LCD | 10.1 inch; 1200*1920; 450nits | IPS |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP | Flash light |
| Power and Battery | 6000mAh / voltage 7.6Vdc(45.6Wh) | Charging time: about 4 hours Usage time: 8H30min (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 | Module: SLM770A |
| GPS | GPS | |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G; Support WiFi6 | WiFi/Bluetooth 2-in-1 |
| BLUETOOTH | 5.0 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |
| Size | 273*172*20mm | |
| Weight | 1150±50g | |
| Language | Multi language | |

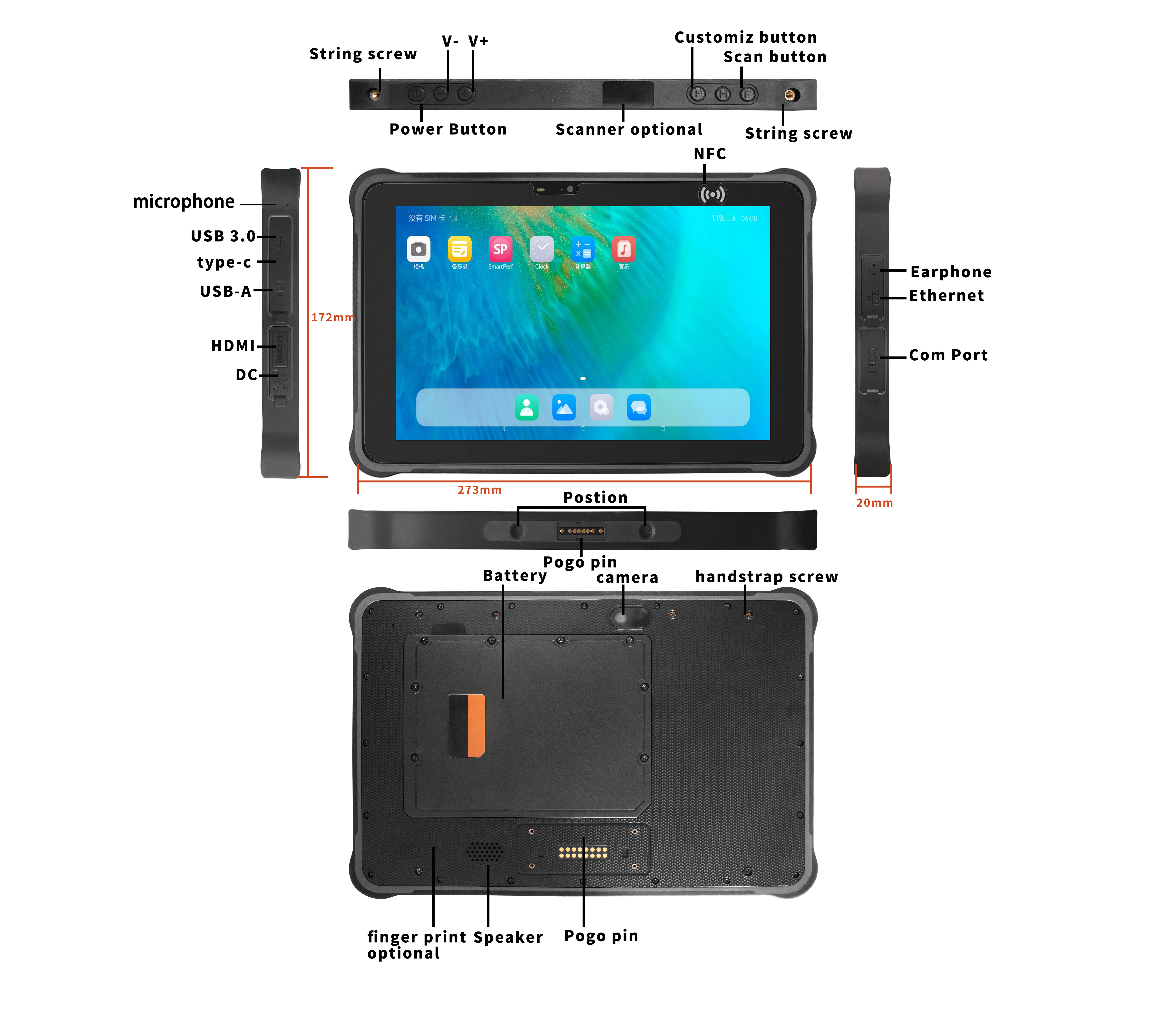

| Interface In/Out Port | 1. Type-C *1 (Support OTG ; Support fast charging) 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB-A：USB 2.0 *1+USB 3.0 *1 7. RJ45*1 8. RS232*1 9. HDMI*1 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional | Honeywell N4680 Optional |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Screw 5. Wrist strap | Optional: 1. Docking Station 2. Car Holder 3. Car Docking 4. Type-C 65W fast charging charger |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
