10.1 inch, Rockchip RK3588 Android Rugged Tablet
ST11-R2 Product Overview
The ST11-R2 is a rugged Android tablet designed for durability and high performance in challenging environments. Key specifications include:
- Operating System: Android 12
- CPU: Rockchip RK3588, Octa-Core (4x Cortex-A76 @ 2.4GHz, 4x Cortex-A55 @ 1.8GHz)
- GPU: ARM Mali G610
- RAM/Storage:
- 8GB/256GB, 16GB/256GB
- Optional: 8GB/512GB, 16GB/512GB
- Display: 10.1-inch IPS LCD, 1200x1920 resolution, 450 nits (1000 nits optional)
- Touchscreen: 10-point touch, stylus support
- Camera: Front 5MP, Rear 13MP with flash
- Battery:
- 6000mAh, up to 8.5 hours usage time
- Charging time: ~4 hours
- Standby time: up to 43 days
- Connectivity:
- WWAN: LTE/WCDMA/GSM with SLM770A module
- GPS: BDS, GPS, GLONASS
- WiFi 6, Bluetooth 5.0
- NFC: 13.56MHz, ISO/IEC 14443A
- Ports:
- Type-C (OTG & fast charging), SIM card slot, TF card slot, earphone jack
- USB-A 2.0 & 3.0, RJ45, RS232, HDMI
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Temperature: Operates from -20°C to 55°C
Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- UHF RFID reader (American/European standards, 3-5m range)
- Fingerprint scanner (AFM60)
- Docking station, car holder, car docking, Type-C 65W fast charger
The ST11-R2 combines robust hardware, versatile connectivity, and rugged durability, making it ideal for industries requiring reliable mobile solutions.
Specifications
| ST11-R2 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 12 | |
| CPU | Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz |
| GPU | ARM Mali G610 | |
| RAM/ROM | 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional |
| LCD | 10.1 inch; 1200*1920; 450nits | IPS Screen; 1000nits(1200*1920) Optional |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 13MP | Flash light |
| Power and Battery | 6000mAh / voltage 7.6Vdc(45.6Wh) | Charging time: about 4 hours Usage time: 8H30min (50% volume, 60% brightness, playing local 1080P video) Standby time: about 43 days (screen off standby) |
| WWAN | FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 | Module: SLM770A |
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G; Support WiFi6 | WiFi/Bluetooth 2-in-1 |
| BLUETOOTH | 5.0 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 | |
| SPEAKER | 8Ω 1.5 Watt | |
| Sensor | 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope | |
| Size | 273*172*20mm | |
| Weight | 1150±50g | |
| Language | Multi language | |

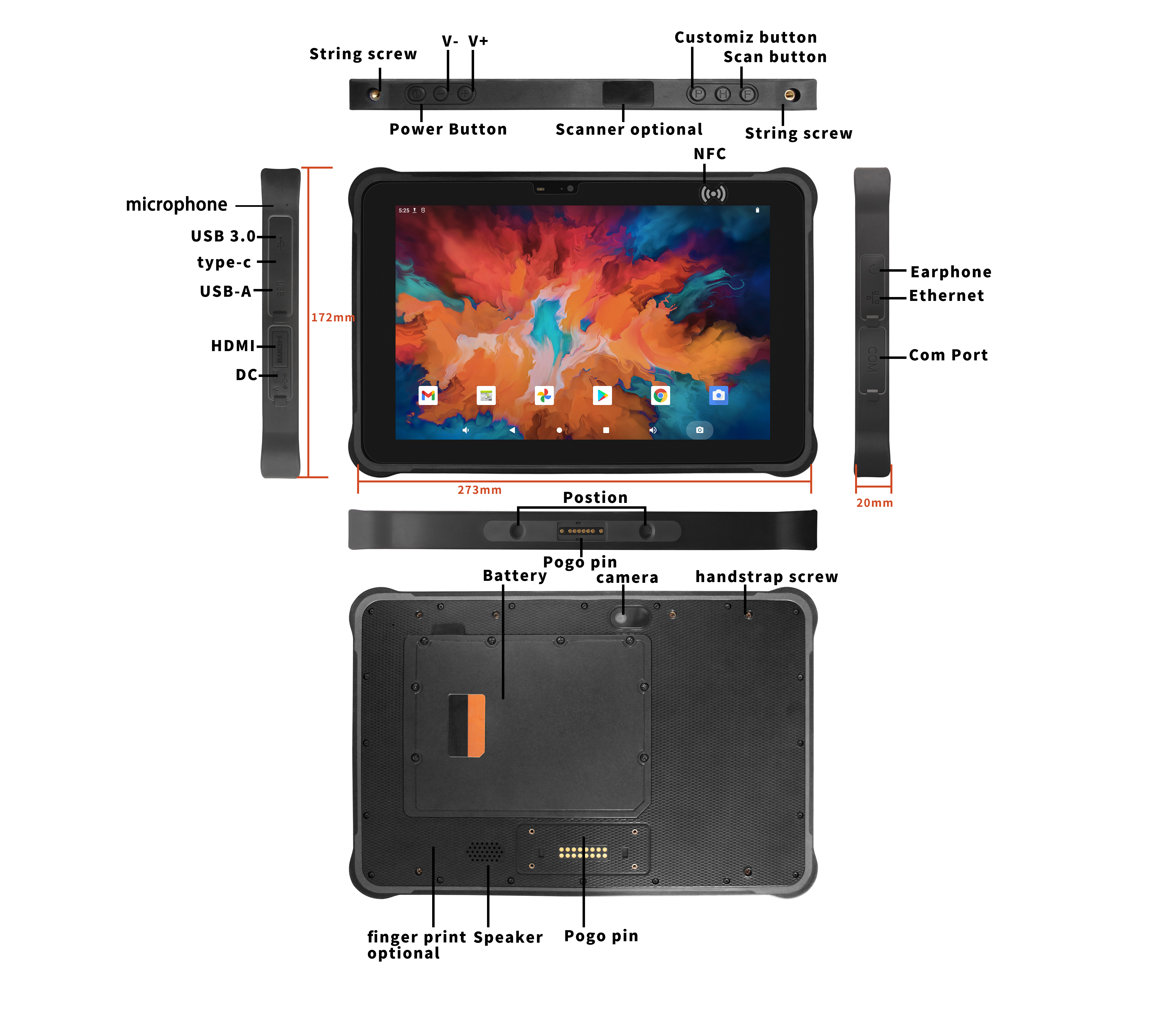

| Interface In/Out Port | 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB-A：USB 2.0 *1+USB 3.0 *1 7. RJ45*1 8. RS232*1 9. HDMI*1 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional | Honeywell N4680 Optional |
| UHF RFID | Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
| European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M | ||
| Fingerprint | Optional | AFM60 Optional |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Screw 5. Wrist strap | Optional: 1. Docking Station 2. Car Holder 3. Car Docking 4. Type-C 65W fast charging charger |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) | |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter | |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C | |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
Case
Download
ST11-R2 Android 12 Data Download
Sincoole specializes in the design and production of rugged devices, with 10 years of industry experience. Our expertise lies in rugged tablets, handheld devices, and industrial computers, deeply rooted in various industries such as industrial applications, new energy applications, medical applications, outdoor data collection, chemical applications, aerospace, and military applications, empowering enterprises. We look forward to collaborating with you.
